Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Surface: | Antiglare, Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo display panel,auo lcd screen |
||
FHD Normally Black 1920x1080 AUO LCD Panel G215HVN01.1 High Definition
| Panel Size : | 21.5 inch | |
| Dot Resolution : | 1920(RGB)×1080 (FHD) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 102 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) | |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) | |
| Weight : | TBD | |
| Surface : |
| |
| Active Area : | 476.64×268.11 mm (H×V) | |
| Bezel Area : | 479.84×271.31 mm (H×V) | |
| Outline Dimension : | 495.6×292.2 mm (H×V) | |
| Outline Depth : | 10.7±0.5 mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| Display Mode : |
| |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 5000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 72% NTSC (CIE1931) | |
| Response Time : | 10/6 (Typ.)(Tr/Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
| |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.

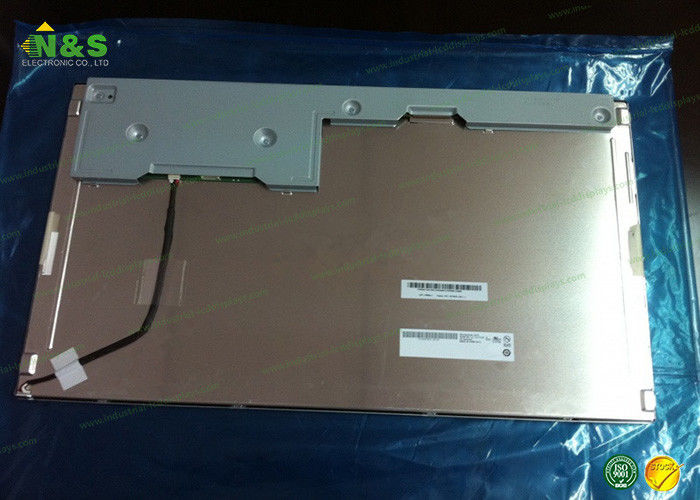

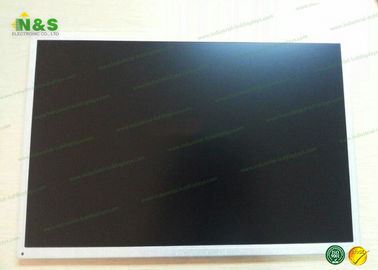

G215HVN01.1 S11 Picture
