Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Surface: | Antiglare, Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
60Hz 8.4 inch G084SN03 V1 AUO lcd display repair Hard coating Surface
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 119 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.071×0.213 mm (H×V) | |
| Pixel Pitch : | 0.213×0.213 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 170.4×127.8 mm (H×V) | |
| Bezel Area : | 173.8×131.2 mm (H×V) | |
| Outline Dimension : | 203×142.5 mm (H×V) | |
| Outline Depth : | 6.0 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 20/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 12 o'clock | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
| A060SE02 VC | AUO | 6.0" | 800×600 |
| A060SE02 V9 | AUO | 6.0" | 800×600 |
| A021AE01 V0 | AUO | 2.1" | |
| A029AE01 V1 | AUO | 2.9" | 230×90 |
| A020AE01 V1 | AUO | 2.0" | 172×72 |
| A060SE02 V7 | AUO | 6.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

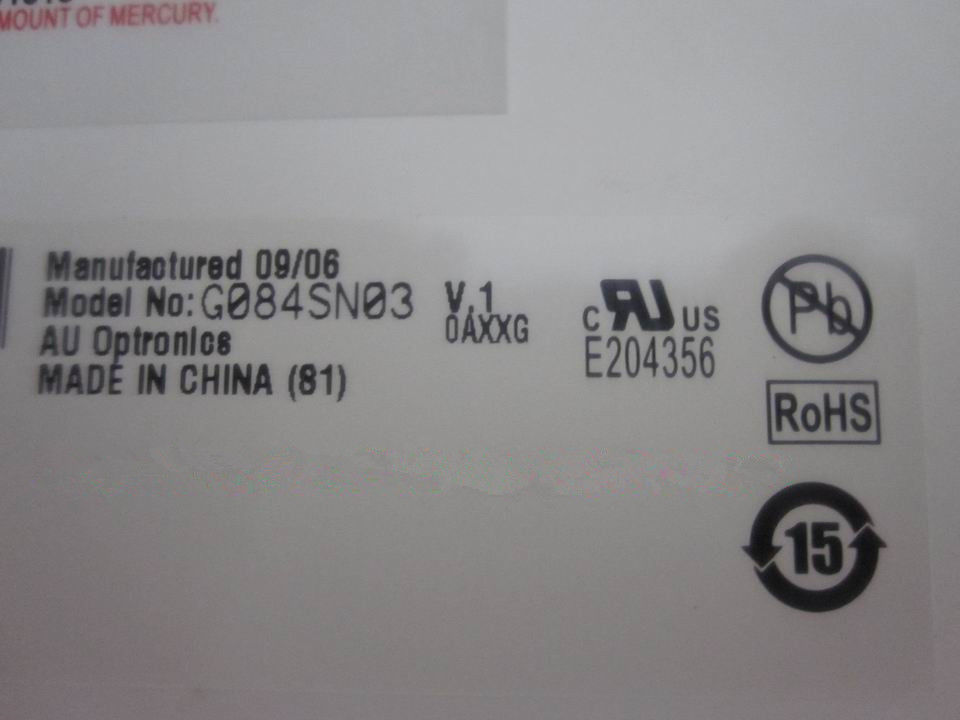

G084SN03 V1 Picture
