Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.1 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 136.08×71.955 Mm | Outline: | 149×82.9×6.1 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

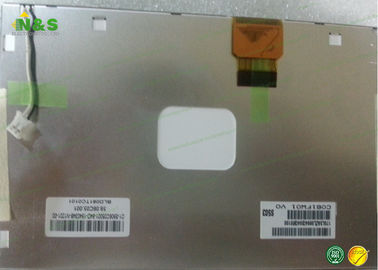

C061FW01 V0 6.1 inch tft lcd screen panel replacement with 136.08×71.955 mm Active Area
C061FW01 V0 Information
| Panel Model | C061FW01 V0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,6.1 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 136.08×71.955 mm |
| Outline | 149×82.9×6.1 mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | Full color , CIE1931 50% |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 7S1P WLED Without Driver |
| Signal Interface | TFT Specific Analog RGB , 30 pins |
| Input Voltage | 5.0/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
