Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 211.2×158.4 Mm | Outline: | 228.4×175.4×6.5 Mm |
| High Light: | auo display panel,auo lcd display |
||

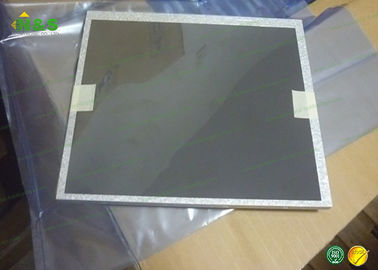

A104SN03 V0 10.4 inch LCM 800×600 Auo Transparent Display 211.2×158.4 mm Active Area
| Panel Model | A104SN03 V0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 228.4×175.4×6.5 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) , CIE1931 50% |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | TTL (1 ch, 6/8-bit) + SPI , 60 pins |
| Input Voltage | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
Our Advantages
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
