Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 165×104×6.3 Mm |
| High Light: | auo display panel,auo lcd display |
||

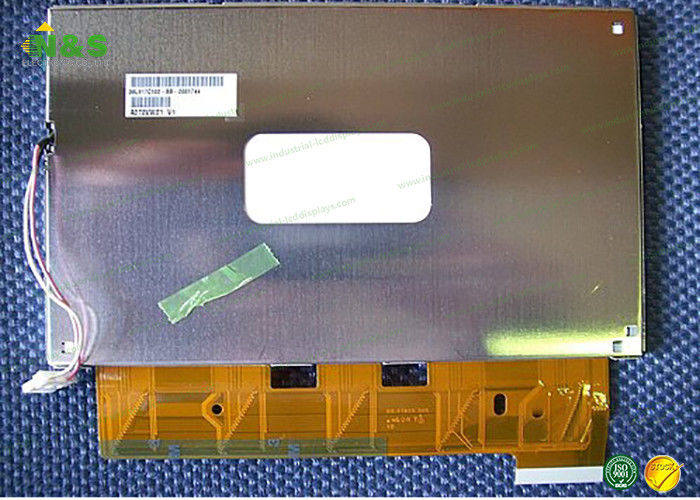

Normally White 7.0 inch A070VW01 V1 AUO LCD Panel with 152.4×91.44 mm Active 800×480 400 300:1 262K CCFL TTL
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
A070VW01 V1 Information
|
| ||
| Dot Resolution : | 800(RGB)×480 (WVGA) | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 133 PPI | ||
| Aspect Ratio : | 15:9 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | ||
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | ||
| Weight : |
| ||
| Surface : | Antiglare (Haze 5.5%) | ||
| Active Area : | 152.4×91.44 mm (H×V) | ||
| Bezel Area : | 154.0×93.64 mm (H×V) | ||
| Outline Dimension : | 165×104 mm (H×V) | ||
| Outline Depth : | 6.0±0.3 mm | ||
| Holes & Brackets : | Without | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : |
| ||
| Display Mode : | TN, Normally White, Transmissive | ||
| Brightness : | 400 cd/m² (Typ.) | ||
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K (6-bit) | ||
| Response Time : | 12/18 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1.920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
