Product Details:
|
| Operating Temperature: | 0 ~ 50 °C | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60 °C | Touch Panel: | Without |
| Contrast Ratio: | 1000 : 1 (Typ.) (Transmissive) | Brightness: | 250 Cd/m² (Typ.) |
| Dot Pitch: | 0.100×0.300 Mm (H×V) | Pixel Pitch: | 0.300×0.300 Mm (H×V) |
| High Light: | auo lcd screen,auo lcd display |
||

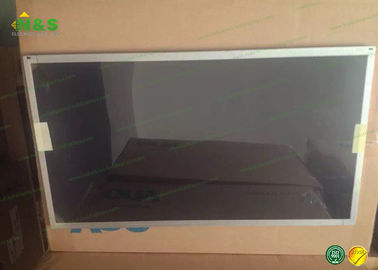

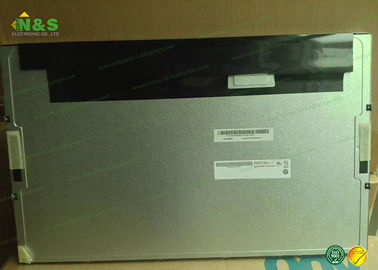

1366*768 TN Normally White Transmissive 18.5 inch AUO LCD Panel M185XW01 VF
Our services:
We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
Basic Info:
Panel Brand : AUO
Panel Model : M185XW01 VF
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 18.5 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 409.8×230.4 mm
Outline : 430.4×254.6×10.4 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
AUO M185XW01 VF Mechanical Features
Panel Size : 18.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 84 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.100×0.300 mm (H×V)
Pixel Pitch : 0.300×0.300 mm (H×V)
Weight : 1.29Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 409.8×230.4 mm (H×V)
Bezel Area : 413.4×234.0 mm (H×V)
Outline Dimension : 430.4×254.6 mm (H×V)
Outline Depth : 6.9/10.4 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without
AUO M185XW01 VF Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sample Charge:
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
