Product Details:
|
| Surface: | Antiglare | Weight: | 122g |
|---|---|---|---|
| Pixel Pitch: | 0.1905×0.1905 Mm (H×V) | Touch Panel: | Without |
| Resolution: | 800(RGB)×480 (WVGA) | Frequency: | 60Hz |
| Panel Size: | 7.0 Inch | Form Factor: | Flat Rectangle Display |
| High Light: | lcd display white screen,lcd panel screen |
||

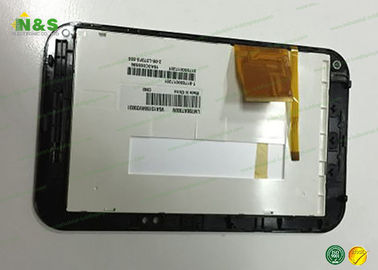

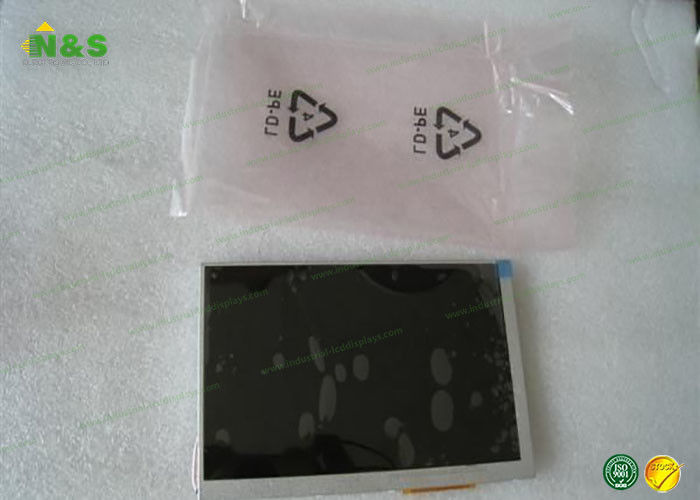

LW700AT9009 Tianma Flat Rectangle 7 inch tft lcd display Without touch
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
ChiHsin LW700AT90 Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| LW700AT9010 | 7.0" | Panel | 800×480 | 250 | 400:01:00 | WLED | 262K |
| LW700AT9009 | 7.0" | Panel | 800×480 | 250 | 400:01:00 | WLED | 16.7M |
| LW700AT9008 | 7.0" | Panel | 800×480 | 500 | 700:01:00 | WLED | 16.7M |
| LW700AT9007 | 7.0" | Panel | 800×480 | 350 | 400:01:00 | WLED | 262K |
| LW700AT9005 | 7.0" | Panel | 800×480 | 200 | 400:01:00 | WLED | 262K |
| LW700AT90030 | 7.0" | Panel | 800×480 | 350 | 400:01:00 | WLED | 262K |
| LW700AT9003 | 7.0" | Panel | 800×480 | 350 | 400:01:00 | WLED | 262K |
| LW700AT9002 | 7.0" | Panel | 800×480 | 250 | 400:01:00 | WLED | 262K |
ChiHsin LW700AT9009 General Features
Panel Brand : ChiHsin
Panel Model : LW700AT9009
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 152.4×91.44 mm
Outline : 165×104.4×5.5 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 45%
Response Time : 5/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S5P WLED Without Driver
Signal Interface : TTL (1 ch, 8-bit) , 60 pins
Input Voltage : 3.3/12.0/18.0/-7.0V (Typ.)(Vcc/AVDD/VGH/VGL)
ChiHsin LW700AT9009 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 122g |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Outline Dimension : | 165×104.4 mm (H×V) |
| Outline Depth : | 5.2±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
ChiHsin LW700AT9009 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 5/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.300; Wy:0.330
