Product Details:
|
| Dot Resolution: | 1920(RGB)×1080 (FHD) | Pixel Configuration: | RGB Vertical Stripe |
|---|---|---|---|
| Form Factor: | Flat Rectangle Display | Pixel Pitch: | 0.17925×0.17925 Mm (H×V) |
| Weight: | 400g (Max.) | Outline Dimension: | 359.5×224.3 Mm (H×V) |
| Outline Depth: | 3.55 (Max.) Mm | Holes & Brackets: | Face Mounting Holes (8 Pcs) On Up, Down Slugs |
| High Light: | auo lcd screen,auo lcd display |
||
G156HTN01.0 AUO 15.6" 1920x1080 TFT LCD Display with eDP connector
Products Signal Interface
| Signal Category : | eDP | |||||
| Signal Class : | eDP (2 Lanes) | |||||
| Input Voltage for Panel : | 3.3V (Typ.) | |||||
| Input Current for Panel : | 606mA (Max.) | |||||
| Panel Power Consumption : | 1.0W (Max.) | |||||
| Interface Type : | Connector | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
AUO G156HTN01.0 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 6/3 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.50 (Typ./Max.)(5 points) |

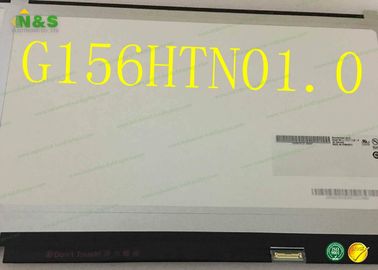

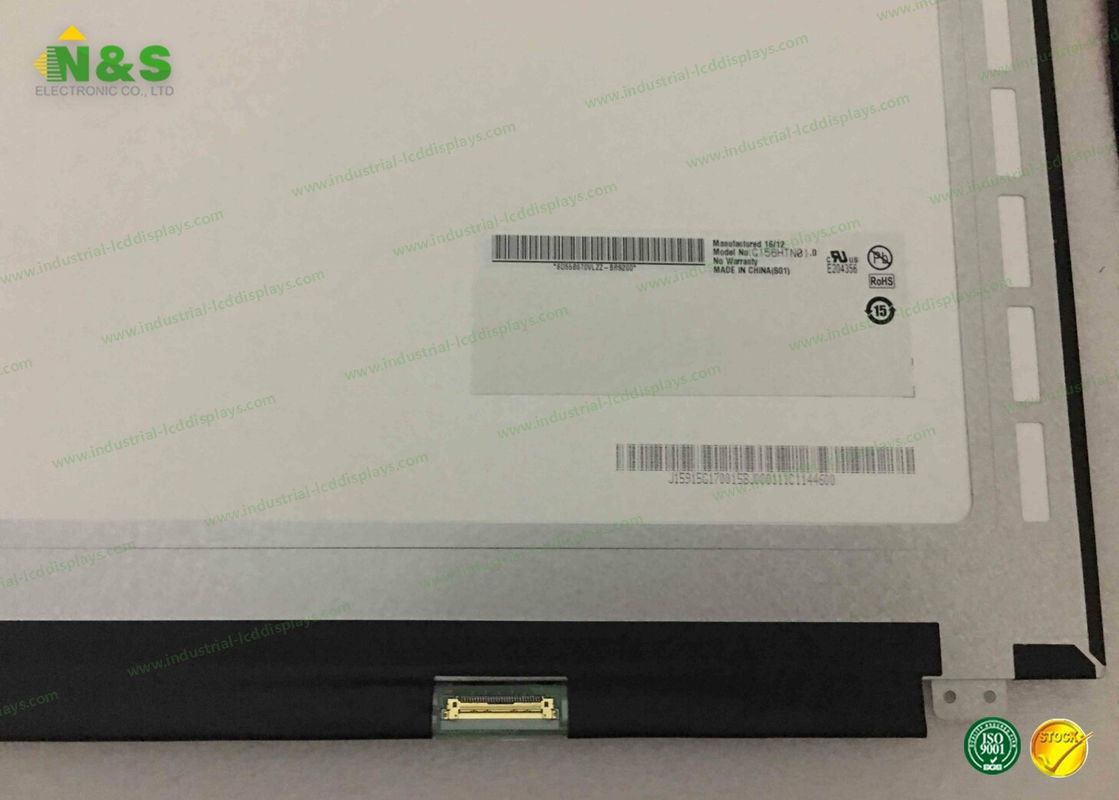

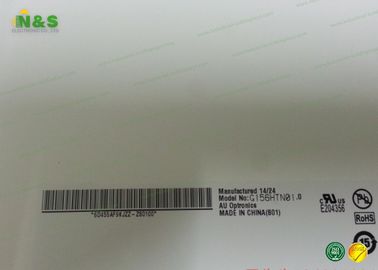

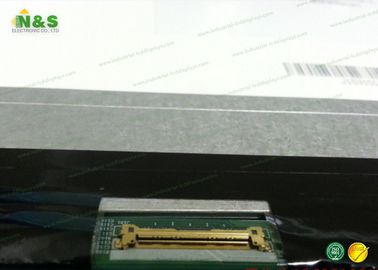

Details Picture Show:
