Product Details:
|
| Contrast Ratio: | 700:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Color: | 262K/16.2M |
| Color Saturation: | 60%NTSC(CIE1931) | Outline: | 326.50× 253.50×12.00 Mm |
| Singnal Interface Definition: | LVDS-20P1C8B-020A | Pixel Arrangement: | RGB Vertical Stripe |
| High Light: | auo display panel,auo lcd screen |
||
1024*768 Antiglare flat lcd panel Screen , G150XTN03.0 tft lcd module High Brightness
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Our Advantage
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Mechanical Features
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.20Kgs (Max.) |
| Bezel Area : | 313.55×237.25 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Photoelectric Parameter
| Display mode | TN, Normally White, Transmissive |
| Luminance | 350 nits |
| Contrast Ratio | 700:1 |
| Color | 262K/16.2M |
| Color Saturation | 60%NTSC(CIE1931) |
| Response | 5.7/2.3 (Tr/Td) ms |
| Viewing Angle | 80/80/85/85(U/D/L/R) |
| White Field Chroma | X:0.313; Y:0.329 |
| White Field Dynamic | 1.25 (9 points) |
| Scanning Frequency | 60Hz |
| The kind of Singnal | LVDS |
| Interface | LVDS |
| Singnal Interface Definition | LVDS-20P1C8B-020A |
| Drive-screen voltage | 3.3V |
| Input Current | 1A |
| Kind of Singnal Interface | Connector |
| Brand of Singnal Interface | E&T |
| Model of Singnal Interface | MSB240420E |
| Pitch of Singnal Interface | 1.25 mm |
| Pin of Singnal Interface | 5 pins |
Product Picture for G150XTN03.0

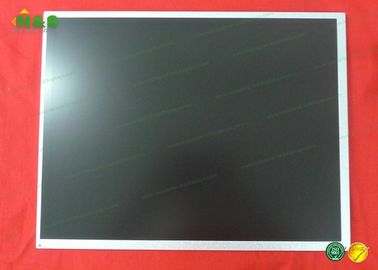

Front Picture

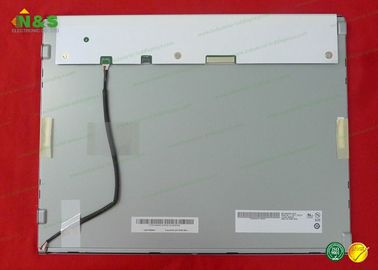

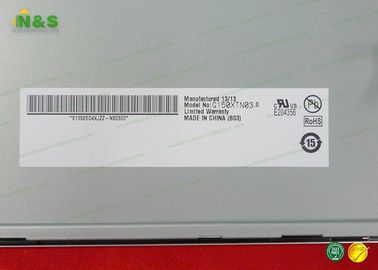

Backside Picture

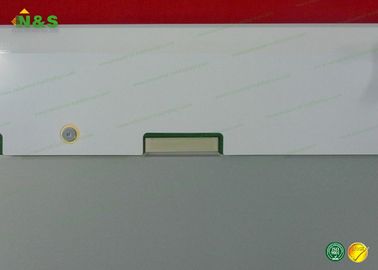

Tabs Picture
