Product Details:
|
| (Display Scale: | 4:3 | Luminance: | 350 Nits |
|---|---|---|---|
| Color Saturation: | 60%NTSC(CIE1931) | White Field Chroma: | X:0.313; Y:0.329 |
| Contrast Ratio: | 700:1 | Response: | 5.7/2.3 (Tr/Td) Ms |
| High Light: | auo display panel,auo lcd screen |
||
Wholesale Wide temperature G150XTN01.0 AUO LCD Panel with 1024*768 Resolution
G150XTN01.0 Basic Parameter
| Productor | AUO |
| MODEL | G150XTN01.0 |
| Size | 15.0 inch |
| Resolution | 1024×768 |
| Resolution Name | XGA |
| Display scale | 4:3 (H:V) |
| Pixel Arrangement | RGBW Rectangle |
| Pixel Pitch | 0.1485×0.1485 mm |
| Panel Composition | LCD Screen |
| Technology | a-Si TFT-LCD |
| Applications | Industry |
| Panel Features | White LED,built-in LED driver,mist,wide Angle,warm water |
Our Advantages
Products Backlight System
| Lamp Position : | Edge light type | |||||
| Lamp Type : | WLED | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Interface Type : | Connector | |||||
| Backlight Interface: | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||
| Lamp Driver Board : | Embedded (LED Driver) | |||||
| Lamp Driver Board : | 10.8/12.0/12.6V (Min./Typ./Max.) | |||||
| Lamp Driver Board : | 0.39A (Typ.) | |||||
| Lamp Driver Board : | 4.68/4.91W (Typ./Max.) | |||||
Primary Competitive Advantages:
*Brand-name Parts
*Country of Origin
*Guarantee/Warranty
*International Approvals
*Packaging
*Price
*Product Features
*Product Performance
*Quality Approvals
*Reputation
*Service
*Small Orders Accepted

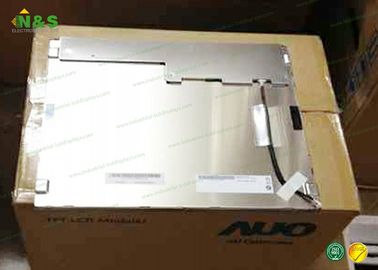

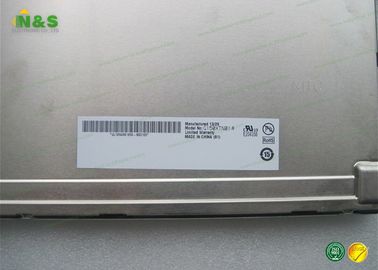

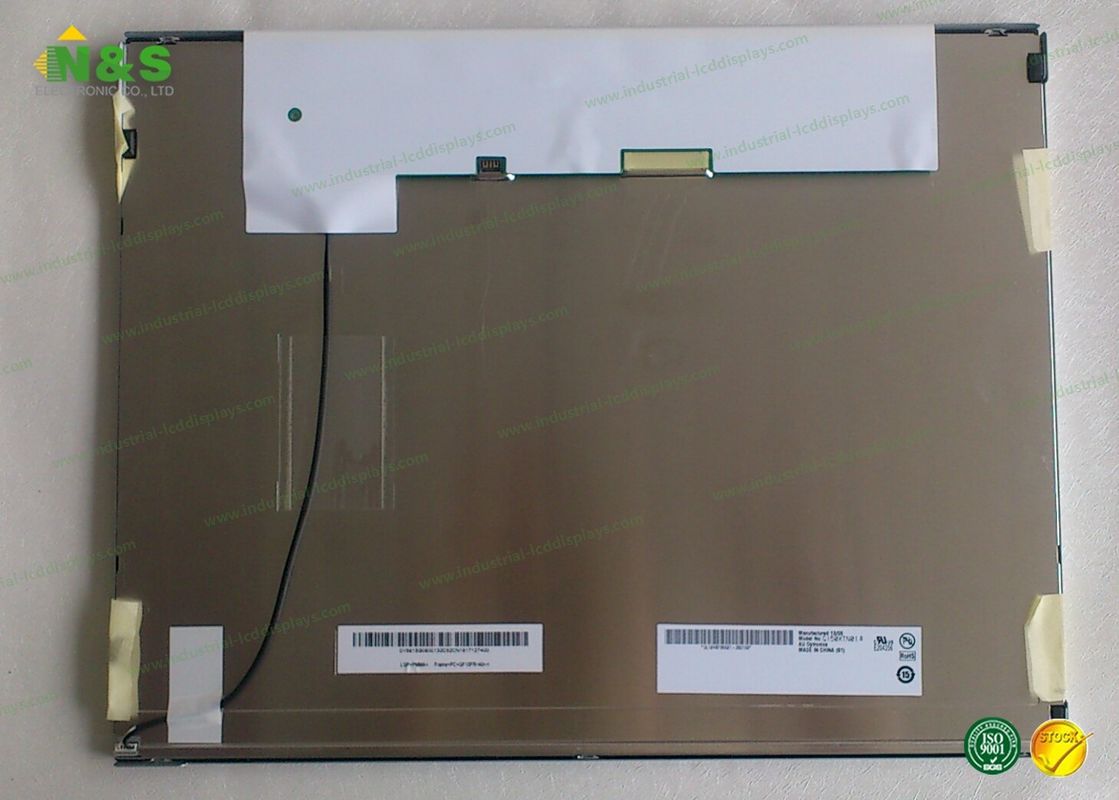

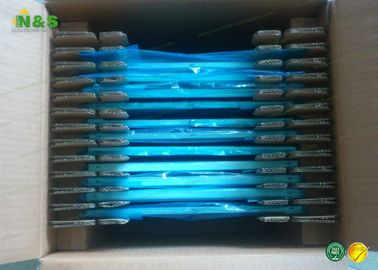

Picture Show:
