Product Details:
|
| Panel Brand: | AUO | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Brightness: | 250 Cd/m² (Typ.) | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 65% |
| White Variation: | 1.25/1.33 (Typ./Max.)(9 Points) | Display Mode: | TN, Normally White, Transmissive |
| Dot Pitch: | 0.099×0.297 Mm (H×V) | Pixel Configuration: | RGB Vertical Stripe |
| High Light: | auo lcd screen,auo lcd display |
||

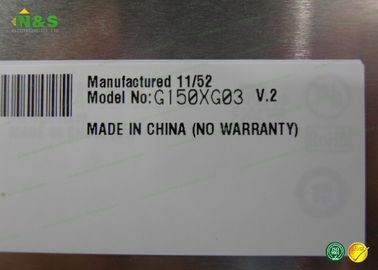

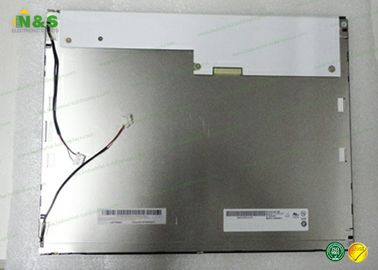

15 inch color TFT LCD G150XG03 V2 AUO LCD Panel for sunlight readable
Product Mechanical Features
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.10Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |

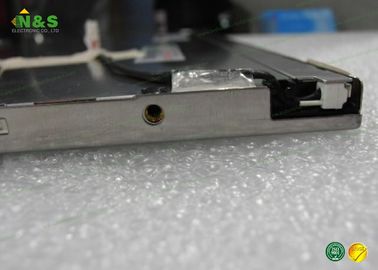

| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Signal Interface
| Signal Category | LVDS | |||||
| Signal Class | LVDS (1 ch, 6/8-bit) | |||||
| Input Voltage for Panel | 3.3V (Typ.) | |||||
| Input Current for Panel | 550/660mA (Typ./Max.) | |||||
| Panel Power Consumption | 1.9/2.2W (Typ./Max.) | |||||
| Interface Type | Connector | |||||

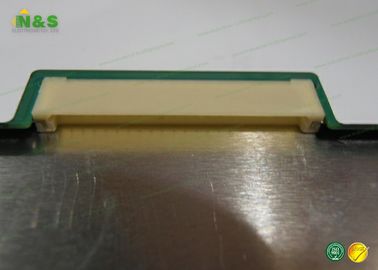

| Signal Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-060D | |
Our Advantages
Product Details for G150XG03 V2
