Product Details:
|
| Dot Resolution: | 1024(2)×768(2) (XGA) | Aspect Ratio: | 4:3 (H:V) |
|---|---|---|---|
| Form Factor: | Flat Rectangle Display | Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) |
| Color Gamut: | 72% NTSC (CIE1931) | Panel Size: | 12.1 Inch |
| Panel Type: | A-Si TFT-LCD , Panel | Storage Temperature: | -30 ~ 85 °C |
| High Light: | auo display panel,auo lcd display |
||
12.1'' 9 Mm thick AUO LCD Panel G121XTN01.0 with 279×209 mm Outline Dimension
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
AUO G121XTN01.0 Mechanical Features
|
Panel Size : |
12.1 inch |
|
Dot Resolution : |
1024(2)*768(2) (XGA) |
|
Pixel Configuration : |
RGBW Rectangle |
|
Pixel Density : |
105 PPI |
|
Aspect Ratio : |
4:3 (H:V) |
|
Form Factor : |
Flat Rectangle Display |
|
Dot Pitch : |
0.120*0.120 mm (H*V) |
|
Pixel Pitch : |
0.240*0.240 mm (H*V) |
|
Weight : |
495g (Max.) |
|
Surface : |
Antiglare, Hard coating (3H) |
|
Active Area : |
245.76*184.32 mm (H*V) |
|
Bezel Area : |
250.8*188.4 mm (H*V) |
|
Outline Dimension : |
279*209 mm (H*V) |
|
Outline Depth : |
9.0 (Max.) mm |
|
Landscape or Portrait : |
Landscape type |
|
Touch Panel : |
Without |
12.1" AUO LCD Displays features:
1. Original 12.1 inch AUO LCD Displays , Aspect Ratio 4:3 AUO a-Si TFT-LCD.
2. WLED backlight , 500 cd/m² (Typ.) high brightness
3. physical resolution 1024(2)×768(2) (XGA).
4. Antiglare, Hard coating (3H).high quality ,Practical ,good vision effect.
5. Outline Depth only 9.0 (Max.) mm.
6. HD LCD Displays unit--- High brightness,high contrast,High gamut .
Company Strength:
1> ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Product Picture for AUO G121XTN01.0

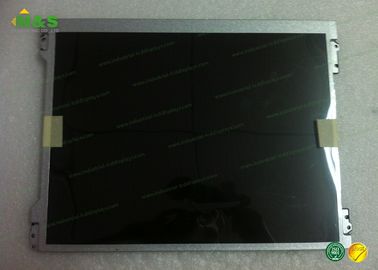

Front Picture

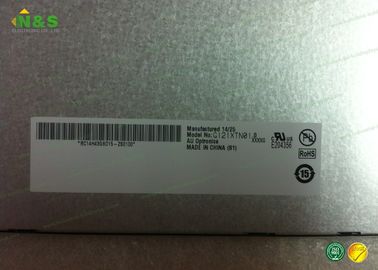

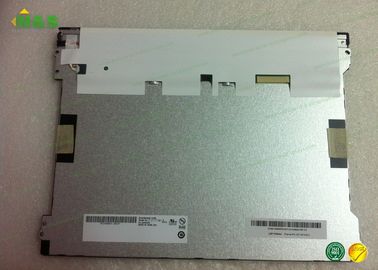

Backside Picture
Tabs Picture

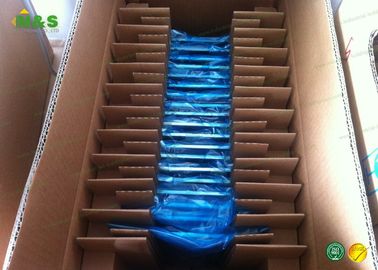

Packaging Picture
