Product Details:
|
| Holes & Brackets: | Rear Mounting Holes (4-Φ2.6) | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Display Colors: | 262K (6-bit) , CIE1931 50% |
| Lamp Type: | WLED Embedded (LED Driver) | Input Voltage: | 3.3V (Typ.) |
| Signal Interface: | CMOS (1 Ch, 6-bit) , 33 Pins | Pixel Density: | 70 PPI |
| High Light: | auo lcd screen,auo lcd display |
||
5.7'' G057QN01 V2 Anti Glare Lcd Screen with Signal Interface for CMOS , High Contrast Ratio
Our Primary Competitive Advantages:
Quick Information
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×12.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
AUO G057QN01 V2 Signal Interface
| Signal Category | TTL | |||||
| Signal Class | CMOS (1 ch, 6-bit) | |||||
| Input Voltage for Panel | 3.3V (Typ.) | |||||
| Input Current for Panel | 115/130mA (Typ./Max.) | |||||
| Panel Power Consumption | 0.46/0.51W (Typ./Max.) | |||||
| Voltage for Display Signals | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Type | Connector | |||||
| Signal Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-010A | |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Product AUO G057QN01 V2 Image

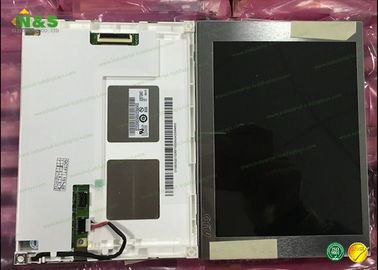

Positive&Backside Picture
