Product Details:
|
| Panel Brand: | TIANMA | Panel Model: | TM121SDS01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Brightness: | 450 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55% |
| Frequency: | 60Hz | Lamp Type: | WLED |
| High Light: | lcd display white screen,lcd panel screen |
||
60Hz TM121SDS01 12.1 inch industrial LCD panel 246×184.5 mm
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
TIANMA TM121SDS01 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM121SDS01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 279×209 mm |
| Surface : | Antiglare |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55% |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
TIANMA TM121SDS01 Mechanical Features
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.05×188.3 mm (H×V) |
| Outline Dimension : | 279×209 mm (H×V) |
| Outline Depth : | 9.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (7 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

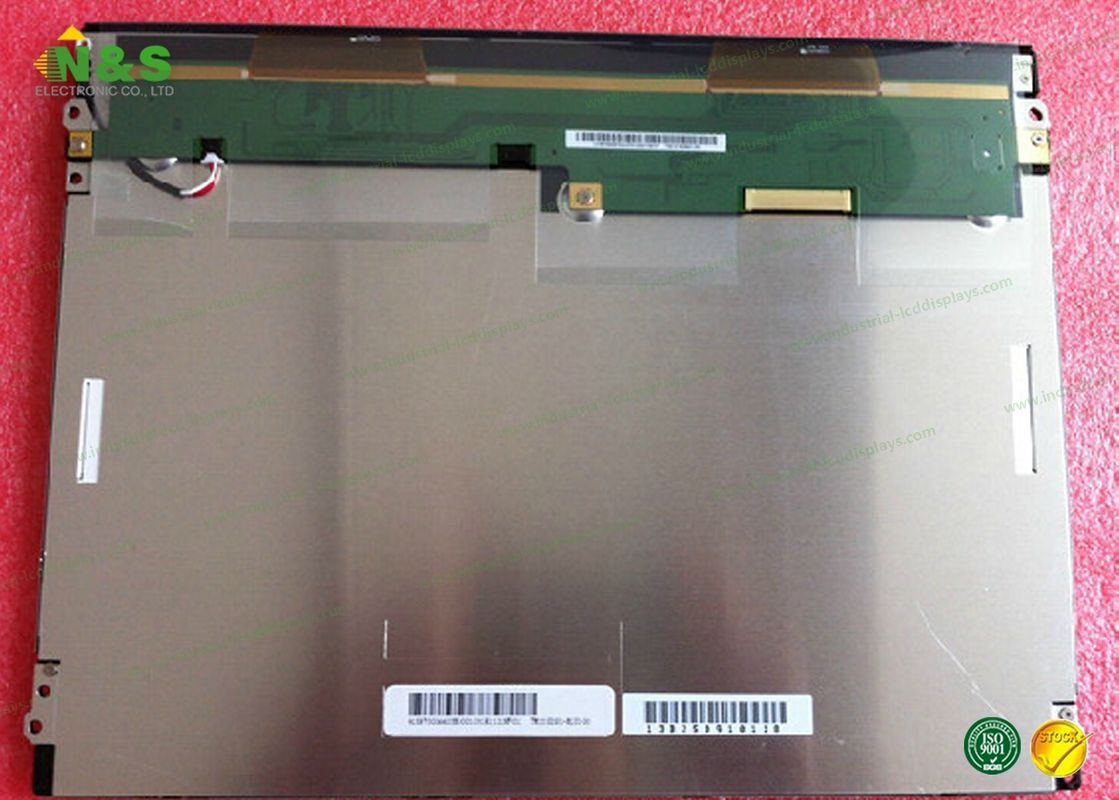

Details Pictures for Tianma LCD Displays TM121SDS01
