Product Details:
|
| Viewing Angle: | 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
|---|---|---|---|
| Lamp Type: | 6S6P WLED | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 196.608×147.456 Mm | Outline: | 210.3×164.4×5 Mm |
| High Light: | lcd display white screen,lcd panel screen |
||

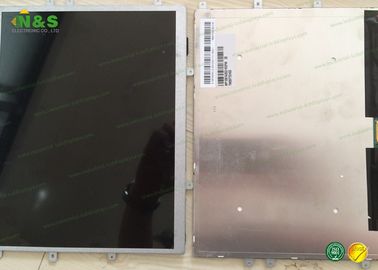

9.7 inch Tianma LCD Displays , TM097TDH05 small touch screen monitor
Production Machinery
| Panel Brand : | TIANMA |
| Panel Model : | TM097TDH05 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 9.7 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 196.608×147.456 mm |
| Outline : | 210.3×164.4×5 mm |
| Surface : | Clear |
| Brightness : | 270 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S6P WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
TIANMA TM097TDH05 Mechanical Features
| Panel Size : | 9.7 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 132 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.192 mm (H×V) |
| Pixel Pitch : | 0.192×0.192 mm (H×V) |
| Weight : | 235g |
| Surface : | Clear |
| Active Area : | 196.608×147.456 mm (H×V) |
| Outline Dimension : | 210.3×164.4 mm (H×V) |
| Outline Depth : | 2.85/5.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right, up slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
