Product Details:
|
Panel Size: | 8.0 Inch | Resolution: | 1024(RGB)×768 , XGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Contrast Ratio: | 700:1 (Typ.) |
Display Colors: | 16.7M (8-bit) , CIE1931 50% | Response Time: | 20 (Typ.)(Tr+Td) |
Viewing Angle: | 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
High Light: | black and white lcd display,lcd display white screen |
TIANMA LCD Display Panel TM080TDH01 8.0 inch 162.048×121.536 mm Active Area 183×141×3.7 mm Outline
TIANMA TM080TDH01 General Features
Panel Brand : | TIANMA |
Panel Model : | TM080TDH01 |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 8.0 inch |
Resolution : | 1024(RGB)×768 , XGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 162.048×121.536 mm |
Outline : | 183×141×3.7 mm |
Surface : | Clear |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 700:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 50% |
Response Time : | 20 (Typ.)(Tr+Td) |
Viewing Angle : | 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 3S9P WLED |
Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
Input Voltage : | 3.3/11.5/20/-7V (Typ.)(DVDD/AVDD/VGH/VGL) |
TIANMA TM080TDH01 Optical Features
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Color Gamut : | 50% NTSC (CIE1931) |
Response Time : | 20 (Typ.)(Tr+Td) |
Viewing Angle : | 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 10:30 o'clock |
White color Chromaticity : | Wx:0.308; Wy:0.327 |
White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
TM050XYSP02 | Tianma | 5.0" | 540×960 |
TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |

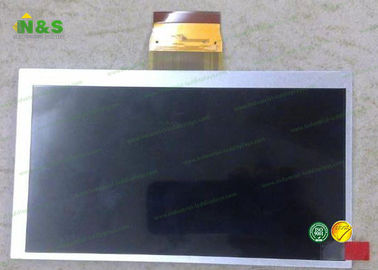

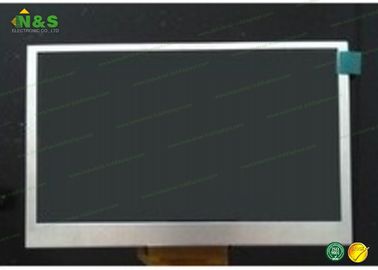

Details Pictures for AVIC LCD Display Panel TM080TDH01
