Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 157.2×82.32 Mm |
|---|---|---|---|
| Outline: | 167×93×6 Mm | Surface: | Antiglare, Hard Coating (3H) |
| Contrast Ratio: | 400:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 70% |
| Response Time: | 20 (Typ.)(Tr+Td) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | lcd display white screen,lcd panel screen |
||

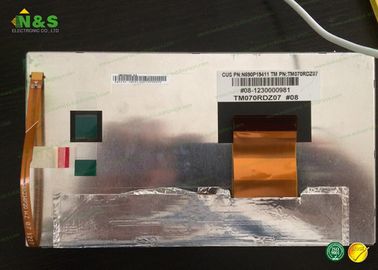

Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline
TIANMA TM070RDZ07 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM070RDZ07 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 157.2×82.32 mm |
| Outline : | 167×93×6 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 650 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 70% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5S3P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
TIANMA TM070RDZ07 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 650 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3 .Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
