Product Details:
|
| Input Voltage: | 3.3/12.6/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VHL) | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 50 Pins |
|---|---|---|---|
| Lamp Type: | 7S3P WLED | Frequency: | 60Hz |
| Surface: | Antiglare | Active Area: | 133.2×73.8 Mm |
| Outline: | 145.5×87.8×3.6 Mm | Resolution: | 800(RGB)×480 , WVGA |
| High Light: | black and white lcd display,lcd panel screen |
||
TM060RDH05 6.0 inch industrial touch screen monitor 133.2×73.8 mm Active Area
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in LCD screen international trade communication.
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Key Specifications
| Panel Brand : | TIANMA |
| Panel Model : | TM060RDH05 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 133.2×73.8 mm |
| Outline : | 145.5×87.8×3.6 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S3P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6/8-bit) , 50 pins |
| Input Voltage : | 3.3/12.6/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VHL) |
TIANMA TM060RDH05 Mechanical Features
| Panel Size : | 6.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 155 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0555×0.1538 mm (H×V) |
| Pixel Pitch : | 0.1665×0.1538 mm (H×V) |
| Weight : | 94.5g |
| Surface : | Antiglare |
| Active Area : | 133.2×73.8 mm (H×V) |
| Bezel Area : | 136.6×76.9 mm (H×V) |
| Outline Dimension : | 145.5×87.8 mm (H×V) |
| Outline Depth : | 3.40±0.20 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |

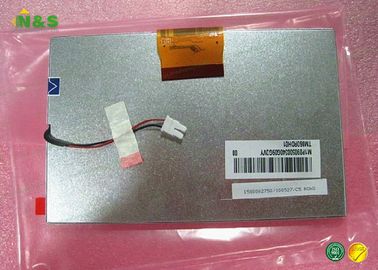

Details Pictures for Tianma LCD Displays TM060RDH05
