Product Details:
|
| Panel Brand: | CHIMEI INNOLUX | Panel Model: | ZJ070NA-03C |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 7.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Contrast Ratio: | 500:1 (Typ.) |
| Display Colors: | 16.7M (8-bit) , CIE1931 70% | Response Time: | 10/15 (Typ.)(Tr/Td) |
| High Light: | chimei lcd display,lcd monitor panel |
||

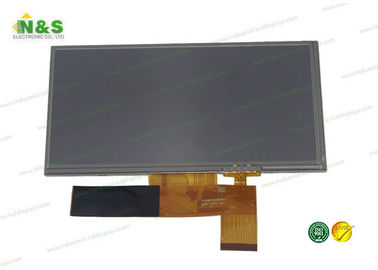

ZJ070NA - 03C 7.0 inch lcd video monitor 165.75×100×4.65 mm Outline
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
CHIMEI INNOLUX ZJ070NA-03C General Features
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | ZJ070NA-03C |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×85.92 mm |
| Outline : | 165.75×100×4.65 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S9P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 67 pins |
| Input Voltage : | 3.3V (Typ.) |
CHIMEI INNOLUX ZJ070NA-03C Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating (3H) |
| Active Area : | 154.08×85.92 mm (H×V) |
| Outline Dimension : | 165.75×100 mm (H×V) |
| Outline Depth : | 4.35±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
