AUO 5.7 Inch 640x480 TFT LCD Screen G057VTN01.1 550 Nits And 33 Pins CMOS Interface

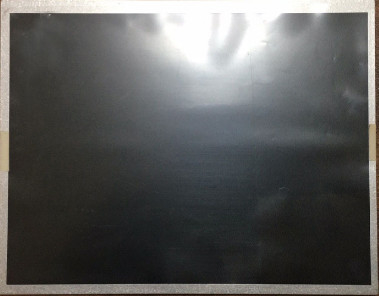

Large Image : AUO 5.7 Inch 640x480 TFT LCD Screen G057VTN01.1 550 Nits And 33 Pins CMOS Interface

Product Details:

Place of Origin:	TaiWan
Brand Name:	AUO
Model Number:	G057VTN01.1

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	pls contact us
Packaging Details:	standard Packaging
Delivery Time:	5-8 work days
Payment Terms:	Western Union,PAPLY,BANK TRANSFER
Supply Ability:	500

Contact Now

AUO 5.7 Inch 640x480 TFT LCD Screen G057VTN01.1 550 Nits And 33 Pins CMOS Interface

Description

Panel Brand:

AUO

Panel Model:

G057VTN01.1

Panel Size:

5.7

Panel Type:

A-Si TFT-LCD,

High Light:

AUO TFT LCD Screen

TFT LCD Screen G057VTN01.1

550 Nits AUO LCD Screen

item	value
Type	TFT
Display Size	5.7 inch
Supplier Type	Agent
Place of Origin	Taiwan, China
Brand Name	AUO
Size	5.7 inch
Resolution	640(RGB)x480 , VGA
Active Area	115.2(H) x 86.4(V)mm
Outline	144.0(H) x 104.6(V) x 12.3(D)mm
Pixel pitch	0.18 x 0.18mm
Arrangement	R.G.B. Vertical Stripe
Treatment	Anti-Glare , Hardness 3H
Nominal Input Voltage VDD	3.3V
Support color	262K , 50% NTSC
Viewing Angle	80/80/70/70
Brightness	550 cd/m²
Contrast Ratio	800:1
Interface	CMOS (1 ch, 6-bit) , 33 pins
Backlight	WLED, 50k hours, with LED driver
Operating Temperature	-30 ~ +85 (°C)
Storage Temp.	-30 ~ +85 (°C)
Response time	15/10ms
Weight	165g
Display mode	TN, Normally White
RoHS Compliance	RoHS Compliance

We also have other industrial LCD panels, pls contact to us for the further information

Panel Model	Brand	Size
X139BLB01.0	AUO	1.39"
H381DLN01.0	AUO	3.8"
H497TLB01.4	AUO	5.0"
G173HW01 V0 CELL	AUO	17.3"
T320HVN05.A CELL	AUO	31.5"
B080EAN04.1 CELL	AUO	8.0"
T500HVN08.8 CELL	AUO	50"
H546DAN01.5	AUO	5.5"
H546DAN08.0	AUO	5.5"
B080XAN03.5	AUO	7.9"
B080XAN03.2	AUO	7.9"
H499TAN05.0	AUO	5.0"
H520DAN01.1	AUO	5.2"

Application Of AUO LCD Panel

Office Electronic Equipment: money counting machine, office phone set, copying mechine...
Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
Medical Devices: sphygmomanometer...
Sports Equipment: running machine...
Industrial Control Equipment: remote control, punched-card machine...
Information Terminal Display: POS...
Security Products: elevator controller, electronic indicator...

Advantage Of AUO LCD Panel

We are professional LCD module manufacture in China with precise and advanced equipments.
High quality Control with CE,ROHS and so on approved.
More than 10 years of industry experience and involved main markets all over the world
Dedicated and professional sales team will offer you 24 hours online and immediate service
OEM and ODM support,12 months warranty for all of our products
Our mission is to help our customers achieve success, then fulfill our both dreams

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

AUO 5.7 Inch 640x480 TFT LCD Screen G057VTN01.1 550 Nits And 33 Pins CMOS Interface 0
