Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0

Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0
Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0

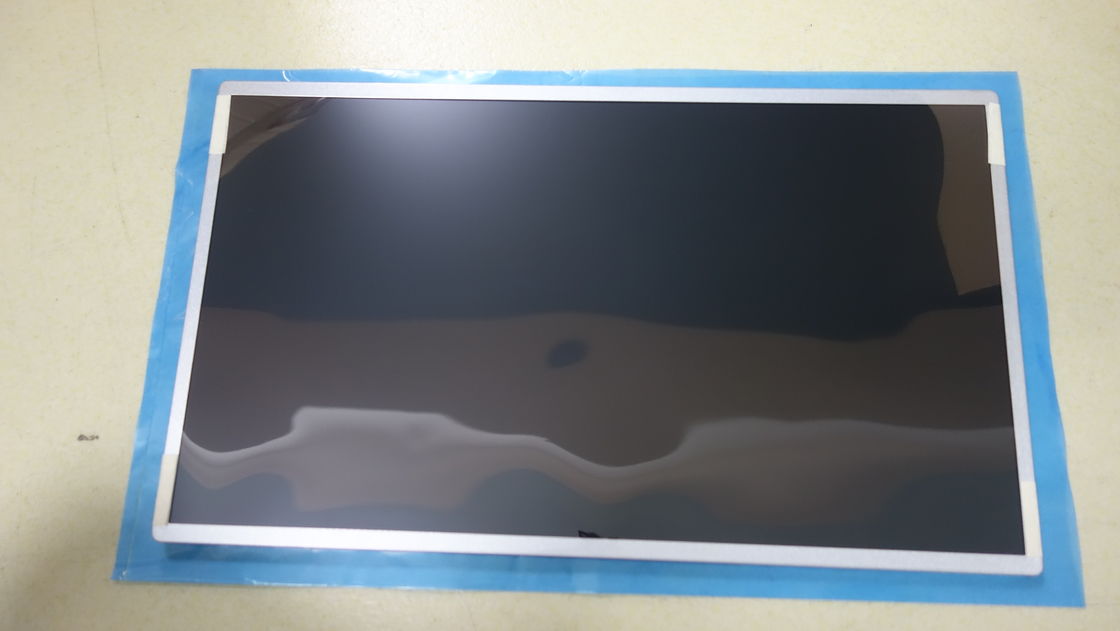

Large Image :  Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G215HAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0

Description
Manufacturer: AUO Model Name: G215HAN01.0
Screen Size: 21.5 Inch Screen Type: LCM, A-Si TFT-LCD
Pixel Number: 1920(RGB)×1080 (FHD) 102PPI Pixel Number1920(RGB)×1080 (FHD) 102PPI Touchscreen: Without
High Light:

21.5" AUO LCD Panel

,

102 PPI AUO LCD Panel

,

G215HAN01.0

Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0



G215HAN01.0 AUO 21.5" LCM 1920×1080 Without Touchscreen And Industrial,Medical Imaging

AUO G215HAN01.0 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.08265×0.24795 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.24795×0.24795 mm (H×V) [102PPI]
Mechanical Size :
Display Area
476.064×267.786 mm (H×V)
Bezel Area
479.8×271.3 mm (H×V)
Outline Dim.
497.6×292.2 mm (H×V)
Outline Depth
17.7±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
2.10Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • Industrial 102PPI 21.5" AUO LCD Panel 1920×1080 G215HAN01.0 0 Back to Top

AUO G215HAN01.0 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
12/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
96% coverage
Adobe RGB
75% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
