Product Details:
|
| Brightness: | 300 Cd/m² (Typ.) | Operating Temp.: | 0 ~ 60 °C |
|---|---|---|---|
| Storage Temp.: | -20 ~ 60 °C | Contrast Ratio: | 2000:1 (Typ.) (TM) |
| Display Mode: | MVA, Normally Black, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Surface: | Antiglare | Lamp Type: | WLED , 50K Hours , With LED Driver |
| High Light: | Symmetry Industrial LCD Panel,G190EG02 V1 LCM Panel,0.098×0.294mm LCD Panel |
||

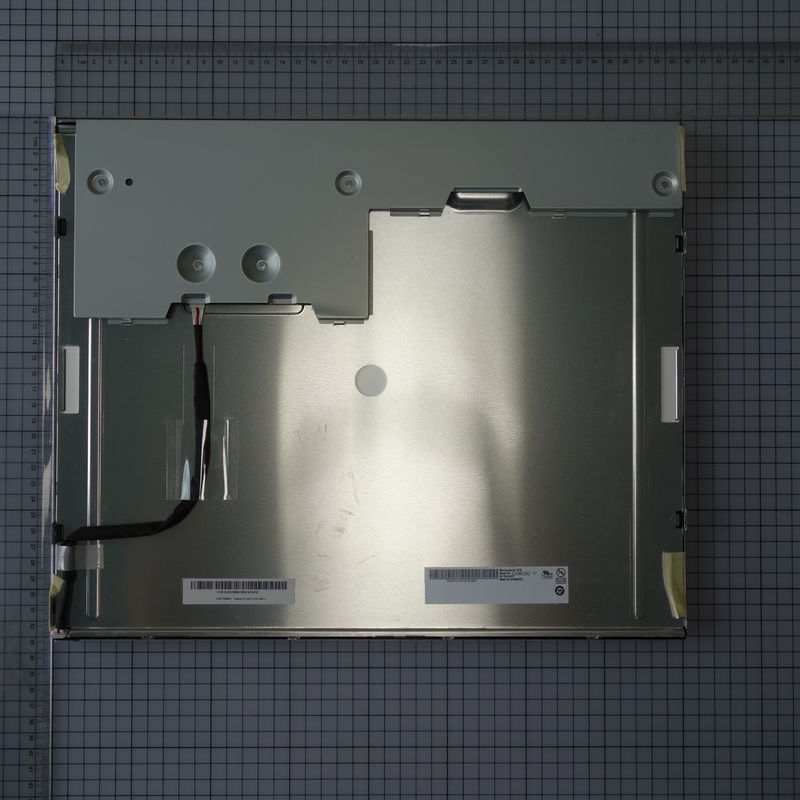

0.098×0.294mm G190EG02 V1 LCM Symmetry Industrial LCD Panel
Description Of AUO LCD Panel
G190EG02 V1 (Alias: G190EG02 V.1) is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver2.1 which was released out on 12 3 2017, G190EG02 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.
We also have other industrial LCD panels, pls contact to us for the further information
| H497DAN01.0 | AUO | 5.0" |
| H498ATN01.1 | AUO | 5.0" |
| H466TAN01.1 | AUO | 4.7" |
| H446TAN01.1 | AUO | 4.5" |
| A070STN01.2 | AUO | 7.0" |
| M215HTN01.1 CELL | AUO | 21.5" |
| M195RTN01.0 CELL | AUO | 19.5" |
| H572TVN01.2 | AUO | 5.7" |
| H402VVN01.0 | AUO | 4.0" |
| M240HTN01.2 CELL | AUO | 24.0" |
| A050VVN01.3 | AUO | 5.0" |
| M195RTN01.1 CELL | AUO | 19.5" |
Application Of AUO LCD Panel G190EG02 V1
1.Automotive Display
2.Handheld & PDA
3.Commercial Display
4.Medical Display
Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
