Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen

Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen
Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen

Large Image :  Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G185XW01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: Standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability: 1000

Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen

Description
Brand: AUO Model: G185XW01 V1
Diagonal Size: 18.5 Inch Type: A-Si TFT-LCD, LCM
Pixel Format: 1366(RGB)×768 [WXGA] 84PPI Configuration: RGB Vertical Stripe
Treatment: Antiglare, Hard Coating (3H) Touch Panel: Without
High Light:

18.5" Auo LCD Screen

,

G185XW01 V1 Auo LCD Screen

,

Diagonal A Si TFT auo lcd screen

Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen





Description Of AUO LCD Panel

G185XW01 V1(Alias: G185XW01 V.1) is a 18.5 inch diagonal a-Si TFT-LCD display screen product from AUO with a built-in WLED backlight, With LED Driver, without touch screen.





AUO G185XW01 V1 Optical Details

Basic Information :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
3.5/1.5 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.43/1.54 (Typ./Max.)(9 points) Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen 0
1931 Color Gamlt :
NTSC Ratio
66%
sRGB
88% coverage
Adobe RGB
68% coverage
DCI-P3
68% coverage
Rec.2020
49% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)







AUO G185XW01 V1 Mechanical Details

Pixel Features :
Number of Pixel
1366(RGB)×768, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.100×0.300 mm
Pixel Pitch(W×H)
0.300×0.300 mm [84PPI]
Physical Size :
Active Viewing
409.8(W)×230.4(H) mm
Overall Dim.
430.4(W)×254.6(H) mm
Bezel Opening
413.4(W)×234.0(H) mm
Overall Depth
16.4±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
-
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.82Kgs (Max.)
Surface
Antiglare, Hard coating (3H)









































Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information



G150XG03 V3 CELL AUO 15.0"
B080XAN03.1 CELL AUO 7.9"
H572DAN01.2 AUO 5.7"
H598AAN01.0 AUO 6.0"
H497DAN01.1 AUO 5.0"
H650DAN01.0 AUO 6.4"
H572DAN01.0 AUO 5.7"
H546DAN01.2 AUO 5.5"
H499TAN03.0 AUO 5.0"
H572TAN01.0 AUO 5.7"
H466TAN02.3 AUO 4.7"
H446TAN03.1 AUO 4.5"
H446TAN03.0 AUO 4.5"
H546AAN01.0 AUO 5.5"
B070ATN01.0 CELL AUO 7.0"
A070SN02 V0 CELL AUO 7.0"



Application of  AUO  G185XW01 V1



1.Communication  Equipment

2. Electronic Watch

3. Military Products

4. Advertising Machine



Advantage Of AUO LCD Panel

1. We are professional LCD module manufacture in China with precise and advanced equipments.

2. High quality Control with CE,ROHS and so on approved.

3. More than 10 years of industry experience and involved main markets all over the world

4. Dedicated and professional sales team will offer you 24 hours online and immediate service

5. OEM and ODM support,12 months warranty for all of our products

6. Our mission is to help our customers achieve success, then fulfill our both dreams



>> Quality ensurance

100% AUO original and brand new!



warranty :12 months !You can enjoy the real panels directly from AUO factory;



>> Packing ensurance

all the products are in original package from original factory directly, and all the packages have labels andserial number!



>> Delivery ensurance

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !





FAQ

1. Payment
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, Western Union, Money Gram, PayPal and cash only
2. Shipment
How long will it take to deliver goods?
We will deliver the goods within 3-5 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreed.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A. We always use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
B. We also always transport by air and sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation. During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers
What Locations can you ship to?
We can send the goods to the whole world if the express way can deliver it.

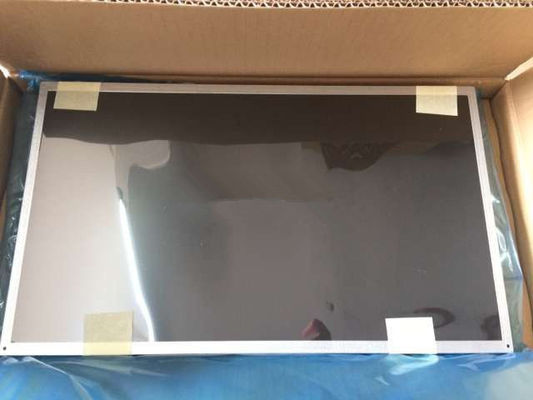

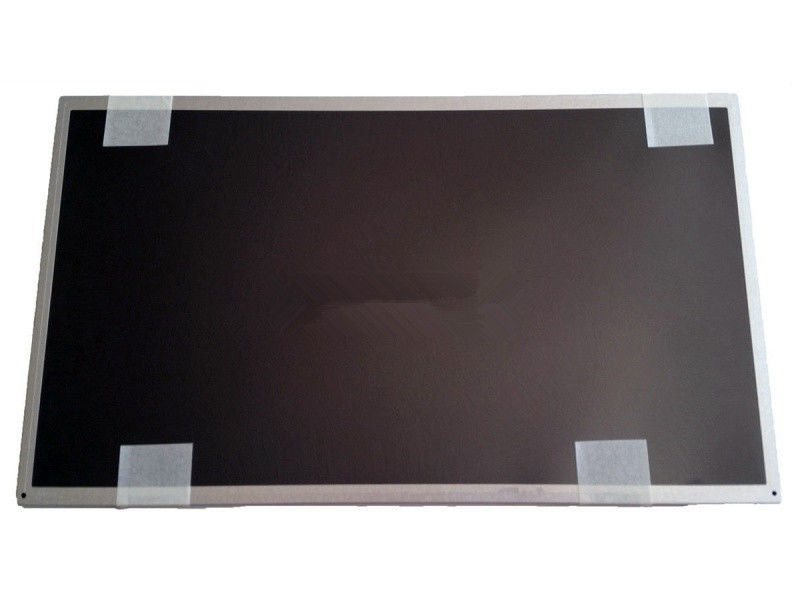

Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen 1Diagonal A Si TFT G185XW01 V1 18.5" Auo LCD Screen 2
