G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel

G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel
G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel

Large Image :  G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G213QAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel

Description
Manufacturer: AUO Model Name: G213QAN01.0
Screen Size: 21.3 Inch Screen Type: LCM, A-Si TFT-LCD
Pixel Number: 2048(RGB)×1536 (QXGA) 120PPI Color Depth: 1.07B 100% SRGB
Signal Type: LVDS (4 Ch, 10-bit) , Connector 82 Pins Backlight: WLED , 50K Hours , With LED Driver
Luminance: 800 Cd/m² (Typ.) Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C
High Light:

10 Bit AUO LCD Screen Panel

,

21.3" Outdoor AUO Screen Panel

,

G213QAN01.0

G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel



Description Of AUO LCD Panel

G213QAN01.0 is a 21.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver1.0 which was released out on 5 10 2017, G213QAN01.0 supports display 2048(RGB)×1536 (QXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.





AUO G213QAN01.0 Optical Details

Basic Information :
Luminance
800 cd/m² (Typ.)
Contrast Ratio
1400:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
13/12 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.299; Wy:0.315
Support Color
1.07B (10-bit)
Color Temperature
7502K
White Variation
1.25 (Max.)(9 points) G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel 0
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
100% coverage
Adobe RGB
75% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-



































































AUO G213QAN01.0 Mechanical Details

Pixel Features :
Number of Pixel
2048(RGB)×1536, QXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0705×0.2115 mm
Pixel Pitch(W×H)
0.2115×0.2115 mm [120PPI]
Physical Size :
Active Viewing
433.152(W)×324.864(H) mm
Overall Dim.
457(W)×350(H) mm
Bezel Opening
438.2(W)×330.0(H) mm
Overall Depth
22.3±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
-
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
3.20±0.332Kgs (Typ.)
Surface
Antiglare

























































Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H497DAN01.1 AUO 5.0"
H650DAN01.0 AUO 6.4"
H572DAN01.0 AUO 5.7"
H546DAN01.2 AUO 5.5"
H499TAN03.0 AUO 5.0"
H572TAN01.0 AUO 5.7"
H466TAN02.3 AUO 4.7"
H446TAN03.1 AUO 4.5"
H446TAN03.0 AUO 4.5"
H546AAN01.0 AUO 5.5"
B070ATN01.0 CELL AUO 7.0"
A070SN02 V0 CELL AUO 7.0"
A050VVN01.2 AUO 5.0"
M320QAN01.1 CELL AUO 32.0"
M270HVN02.0 CELL AUO 27.0"
M270HTN01.1 CELL AUO 27.0"
B116XAN03.0 CELL AUO 11.6"
M215HTN01.3 CELL AUO 21.5"
M190PW01 V8 CELL AUO 19.0"
H380VW01 V0 AUO 3.8"
A030DTN01.1 AUO 3.0"
H466AAN01.0 AUO 4.7"





Application Of AUO LCD Panel G213QAN01.0

1. Military Industry

2. Security Monitoring System

3. Industrial Control

4. Medical Equipment





Pre-sales service :

1. Our team design and make solutions based on different requirements from different customers.

2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer customer to keep fastly reply.





Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

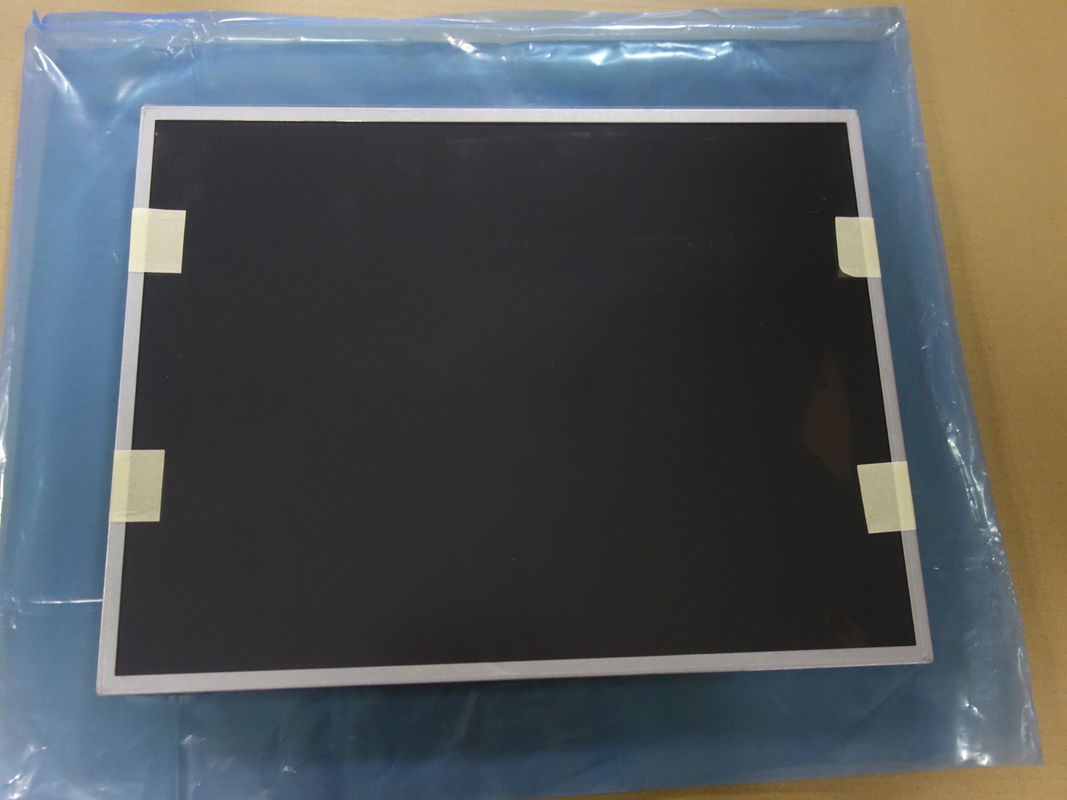

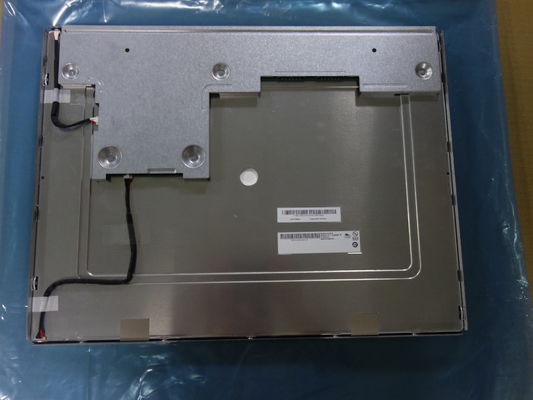

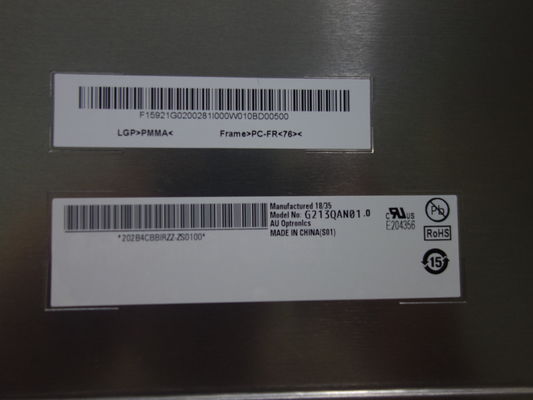

G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel 1G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel 2G213QAN01.0 21.3" Outdoor 10 Bit AUO LCD Screen Panel 3
