Product Details:
|
| Size: | 10.4 Inch | Resolution: | 800×600 |
|---|---|---|---|
| Brightness: | 400 | C/R: | 500:1 |
| View Angle: | 70/70/60/70 | Colors: | 262K/16.2M |
| Backlight: | WLED | View Direction: | 12 O'clock |
| Support Color: | 262K/16.2M 50% NTSC | Treatment: | Antiglare, Hard Coating (3H) |
| Touch Panel: | Without | ||
| High Light: | lcd display white screen,lcd panel screen |
||

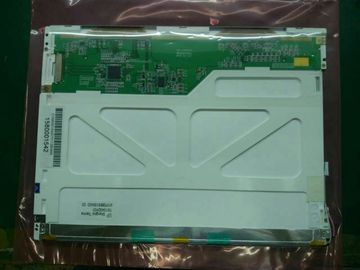

1. TIANMA TM104SDH03 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 214.8×161.8 mm (H×V) |
| Outline Dim. | 243×179.4 mm (H×V) | Outline Depth | 8.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Weight | 433g (Typ.) | Surface | Antiglare, Hard coating (3H) |
2. TIANMA TM104SDH03 Optical Details
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.345 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6760K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 67% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. TIANMA TM104SDH03 Backlight Details
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 5S8P | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-03R | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12/14.25/16.5V (Min./Typ./Max.) | Current Input | 0.2A (Typ.) | ||
| Consumption | 2.85W (Typ.) | |||||
4. TIANMA TM104SDH03 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | TBD | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 107A20-0021RA-G3-R | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080C | |
