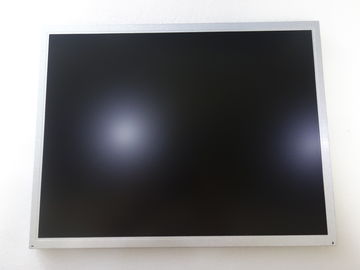

Product Details:
|
Size: | 15 Inch | Resolution: | 1024×768 |
---|---|---|---|
Outline Size: | 326.5(W)×253.5(H) ×12(D) Mm | Bezel Opening: | 307.4(W)×231.3(H) Mm |
Surface: | Antiglare | Brightness: | 300 Cd/m² (Typ.) |
Contrast Ratio: | 800:1 (Typ.) (TM) | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
Touch Screen: | Without | Application: | Industrial |
High Light: | auo lcd screen,auo lcd display |
Pixel Features : |
Pixel Format:1024(RGB)×768, XGA
Dot Pitch:0.099×0.297 mm (H×V)
Configuration:RGB Vertical Stripe
Pixel Pitch:0.297×0.297 mm (H×V)
|
---|---|
Mechanical Size : |
Display Area:304.128×228.096 mm (H×V)
Bezel Area:307.4×231.3 mm (H×V)
Outline Dim.:326.5×253.5 mm (H×V)
Outline Depth:12.0 (Max.) mm
|
Outline Features : |
Form Factor:Flat Rectangle
Orientation:Landscape type
Aspect Ratio:4:3 (H:V)
Shape Style:-
|
Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel
|
Other Features : |
Weight:1.25Kgs (Typ.)
Surface:Antiglare
|
