Product Details:
|
| Manufacturer: | AUO | Model Name: | G240UAN01.1 |
|---|---|---|---|
| Screen Size: | 24.0 Inch | Screen Type: | LCM, A-Si TFT-LCD |
| Refresh Rate: | 60Hz | Touchscreen: | Without |
| High Light: | auo display panel,auo lcd screen |
||

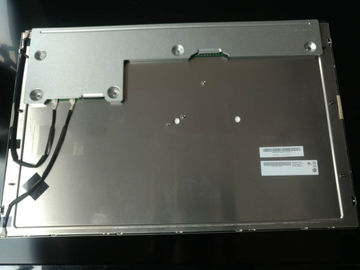

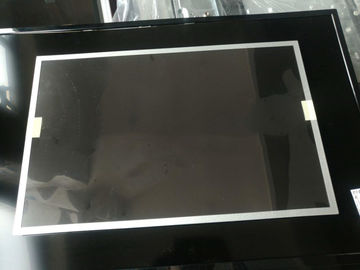

G240UAN01.1 AUO 24 inch LCM 1920×1200 LCD display
| Screen Size : | 24.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 518.4×324 mm | 521.4×327.0 mm | 546.4×352 mm | 18.6 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | - | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antiglare | ||
| Holes & Brackets : | Rear mounting Pole (6-M3) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 750 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Gamut | Support Color | Color Coordinate |
| 88% NTSC (CIE1931) | 1.07B (10-bit) | Wx:0.313; Wy:0.329 | |
| White Uniformity : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
We also have other industrial LCD panels, pls contact to us for the further information
