Product Details:
|
| Panel Model: | G121XN01 V001 | Manufacturer: | AUO |
|---|---|---|---|
| Screen Size: | 12.1 Inch | Mass: | 510g (Max.) |
| Refresh Rate: | 60Hz | Voltage Supply: | 3.3V (Typ.) |
| Screen Type: | LCM , A-Si TFT-LCD | Touchscreen: | Without |
| High Light: | auo lcd screen,auo lcd display |
||

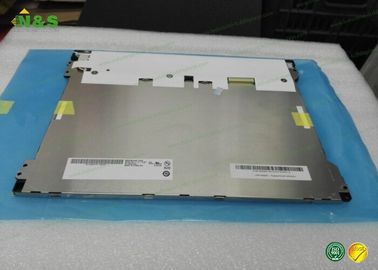

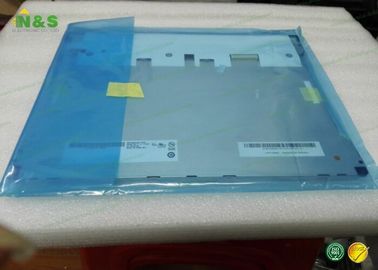

New and original G121XN01 V001 AUO 12.1 inch LCM 1024×768 500 for Industaial Application
G121XN01 V001 Information
| Panel Model | G121XN01 V001 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 245.76×184.32 mm |
| Outline | 279×209×9 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 72% |
| Response Time | 25/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S2P WLED Embedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Panel Model | G121XN01 V001 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
| Lamp Position | Edge light type (Top side) |
|---|---|
| Lamp Type | WLED |
| Lamp Amount | 9S2P |
| Lamp Shape | 2 strings |
| Lamp Life Time | 50K(Min.) (Hours) |
| Lamp Replaceable | No |
| Interface Type | Connector |
| Lamp Driver Board | 5.88/7.5W (Typ./Max.) |
Why Choose our company?
Our LCD module can ensure quantity of sale especial for the Hard-to-find LCD screen replacements.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO9001 quality management system.
Mature and Professional after-sale service.
Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands.
Optical Features
Display Mode : P-MVA, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 15/10 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
AUO ptronics M201UN02 Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M201UN02 V6 | 20.1" | Panel | 1600×1200 | 300 | 1000:01:00 | CCFL | 16.7M |
| M201UN02 V5 | 20.1" | Panel | 1600×1200 | 300 | 1000:01:00 | CCFL | 16.7M |
| M201UN02 V3 | 20.1" | Panel | 1600×1200 | 250 | 700:01:00 | CCFL | 16.7M |
| M201UN02 V2 | 20.1" | Panel | 1600×1200 | 250 | 700:01:00 | CCFL | 16.7M |
| M201UN02 V1 | 20.1" | Panel | 1600×1200 | 250 | 500:01:00 | CCFL | 16.7M |
We still have other LCD panel models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Brands: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
