Product Details:
|
| Panel Model: | M215HJJ-L30 Rev.C1 | Panel Brand: | INNOLUX |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Display Mode: | Normally Black |
| Active Area: | 476.064×267.786 Mm | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||

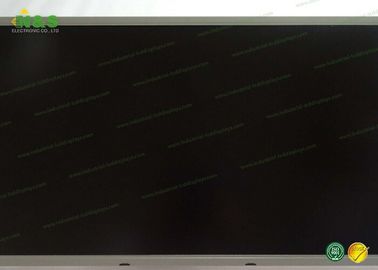

21.5 inch M215HJJ-L30 REV.C5 Normally Black 476.064×267.786 mm Active Area for 60Hz
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
M215HJJ-L30 REV.C5 Information
| Panel Model | M215HJJ-L30 Rev.C1 |
|---|---|
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | MVA, Normally Black, Transmissive |
| Active Area | 476.064×267.786 mm |
| Outline | 495.6×292.2×11.5 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 20/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 strings WLED Without Driver |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins |
M215HJJ-L30 Rev.C1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 102 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08265×0.24795 mm (H×V) |
| Pixel Pitch | 0.24795×0.24795 mm (H×V) |
| Weight | 1.91/2.10Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
| ME270NA-01A | Innolux | 27.0" | 1920×1080 |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
| F050A07-6T2 | Innolux | 5.0" | 720×1280 |
| V650HP1-PS6 Rev.C6 | Innolux | 65" | 1920×1080 |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
