G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display

G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display
G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display

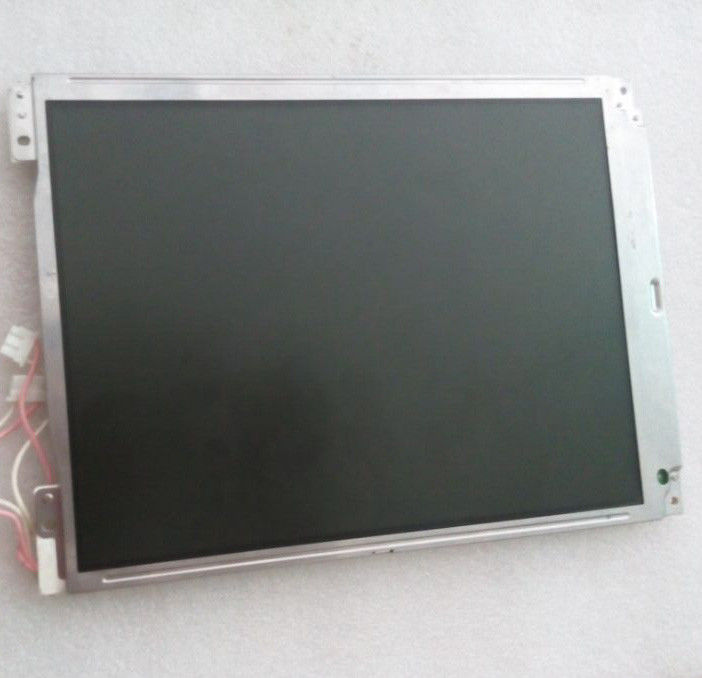

Large Image :  G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display

Product Details:
Place of Origin: korea
Brand Name: Innolux
Model Number: G070Y2-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: pls contact us
Packaging Details: standard Packaging
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display

Description
Panel Brand: Innolux Panel Model: G070Y2-L01
Panel Size: 7.0" Panel Type: A-Si TFT-LCD , LCM
Resolution: 800(RGB)×480, WVGA, 133PPI Touch Screen: Without
High Light:

G070Y2-L01

,

7 Inch Innolux LCD Panel

,

800×480 Automotive Display

G070Y2-L01 Innolux LCD Panel 7 Inch LCM 800×480 Automotive Display

Innolux G070Y2-L01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×480, WVGA
Dot Pitch(mm)
0.0635×0.1905 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :
Active Area(mm)
152.4(H) × 91.44(V)
Bezel Area(mm)
154.6(H) × 93.64(V)
Outline Dim.(mm)
165(H) × 104(V)
Depth(mm)
9.53±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
15:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
147/162g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.


Innolux G070Y2-L01 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
5/11 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
97% coverage
Adobe RGB
75% coverage
DCI-P3
77% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
