G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen
G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

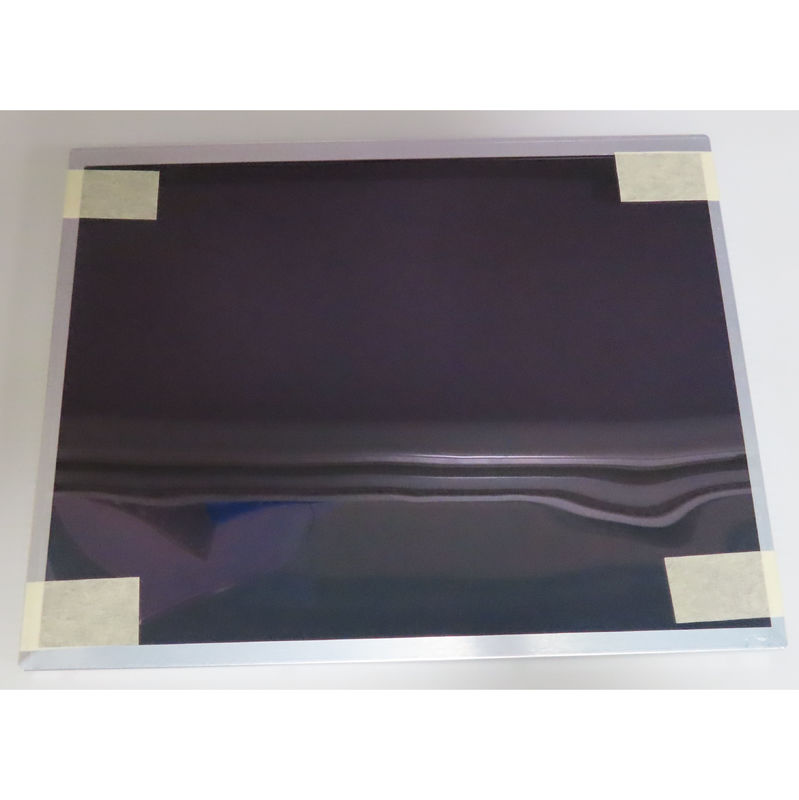

Large Image :  G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

Product Details:
Place of Origin: korea
Brand Name: Innolux
Model Number: G104X1-L04
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: pls contact us
Packaging Details: standard Packaging
Supply Ability: 500

G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

Description
Panel Brand: Innolux Panel Model: G104X1-L04
Panel Size: 10.4" Panel Type: A-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA, 123PPI Touch Screen: Without
High Light:

LCM Innolux LCD Panel

,

G104X1-L04

,

10.4 inch Innolux LCD Panel

G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

Innolux G104X1-L04 Mechanical Details

Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.0685×0.2055 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2055×0.2055 (H×V) [123PPI]
Mechanical Size : Active Area(mm) 210.4(H) × 157.8(V) Bezel Area(mm) 215.4(H) × 161.8(V)
Outline Dim.(mm) 225.5(H) × 176.3(V) Depth(mm) 7.96/9.2 (Typ./Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M2) on left, right bezel
Other Spec : Weight 430±50g Treatment Antiglare
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.


Innolux G104X1-L04 Optical Details

Basic Information : Luminance(cd/m²) 500 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)  Display Mode Super MVA, Normally Black, Transmissive
Best View on Symmetry Response(ms) 14/11 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 55% sRGB 77% coverage
Adobe RGB 58% coverage DCI-P3 57% coverage
Rec.2020 41% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
