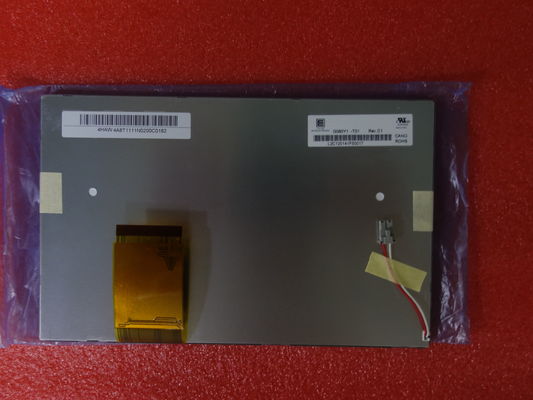

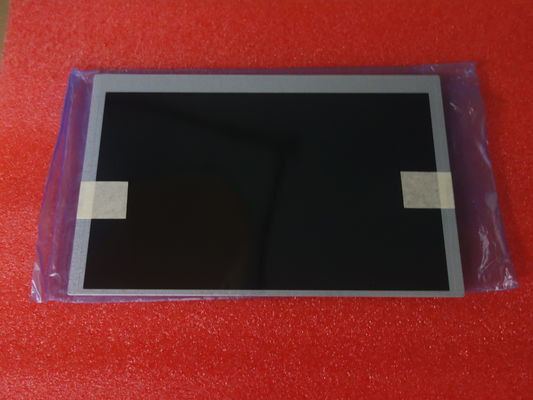

G080Y1-T01 Innolux 8" LCM 800×480 Industrial LCD Panel

G080Y1-T01 Innolux  8" 	LCM 800×480  Industrial    LCD Panel
G080Y1-T01 Innolux  8" 	LCM 800×480  Industrial    LCD Panel G080Y1-T01 Innolux  8" 	LCM 800×480  Industrial    LCD Panel

Large Image :  G080Y1-T01 Innolux 8" LCM 800×480 Industrial LCD Panel

Product Details:
Place of Origin: KOREA
Brand Name: Innolux
Model Number: G080Y1-T01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: Standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability: 1000

G080Y1-T01 Innolux 8" LCM 800×480 Industrial LCD Panel

Description
Manufacturer: Chimei Innolux Model Name: G080Y1-T01
Screen Size: 8.0 Inch Screen Type: LCM , A-Si TFT-LCD
Arrangement: RGB Vertical Stripe Work Mode: TN, Normally White, Transmissive
Backlight: 9S3P WLED , 30K Hours , No Driver Touchscreen: Without

Quick Details



Manufacturer Chimei Innolux
Model Name G080Y1-T01
Screen Size 8.0 inch
Screen Type LCM , a-Si TFT-LCD
Pixel Number 800(RGB)×480 (WVGA) 117PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 173.4 × 104.04 (H×V)
Outline(mm) 190 × 120 (H×V×D)
Bezel Area(mm) 175.2 × 105.84 (H×V)



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

HE080IA-01D Innolux 8.0"
HE070IA-04F Innolux 7.0"
N173FGE-P23 Innolux 17.3"
N116BGE-P32 Innolux 11.6"
N116BGE-P42 Innolux 11.6"
M220ZGE-P01 Innolux 22.0"
V236BJ1-P01 Innolux 23.6"
CT024TN01 V.X Innolux 2.4"
M215HGE-P02 Innolux 21.5"
F03003-05L Innolux 3.0"
EE027NA-02A Innolux 2.7"
M236HGE-P02 Innolux 23.6"
M215HGE-P03 Innolux 21.5"
V236H3-PS1 Innolux 23.6"
HE050NA-01F Innolux 5.0"
M236HGE-P01 Innolux 23.6"
M215HGE-P01 Innolux 21.5"
AT070TN90 Innolux 7.0"
PH030NA-04A Innolux 3.0"
EE090NA-01C Innolux 9.0"
EE080NA-06A Innolux 8.0"



Chimei Innolux G080Y1-T01 Mechanical Features

Screen Size : 8.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×480, WVGA RGB Vertical Stripe 0.07225×0.21675 mm 0.21675×0.21675 mm [117PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
173.4×104.04 mm 175.2×105.84 mm 190×120 mm 5.06±0.3 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 15:9 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
172g (Typ.) - Antiglare, Hard coating (3H)





Chimei Innolux G080Y1-T01 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) 22.8/36.5/0.206/0.211mA (Typ.)(ICC/IDD/IGG/IEE) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Signal Type Physical Type Interface Position
TTL (1 ch, 6/8-bit) FPC -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
    1 pcs 60 pins 0.5 mm




Application Of Chimei Innolux G080Y1-T01
1)Medical  Instrument
2)Adversting Machine
3)Eiectronic Watch
4 )Communication Equipment
5 )Military  Products


Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months (3) We will do our best to solve any possible problem for your after sale. Please contact with warranty for every item, depend on the different item.
us.



FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.
