Product Details:
|
| Panel Brand: | INNOLUX | Panel Model: | M220ZGE-L20 |
|---|---|---|---|
| Size: | 22.0 Inch | Panel Type: | A-Si TFT-LCD |
| Display Mode: | Normally White | Outline: | 493.7×320.1 Mm |
| High Light: | tft lcd display,lcd display panel |
||

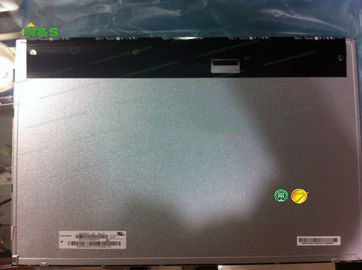

Normally White M220ZGE-L20 Innolux LCD Panel 22.0 inch 473.76×296.1 mm Active Area for 60Hz
M220ZGE-L20 General Features
| Panel Model | M220ZGE-L20 |
|---|---|
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,22.0 inch, 1680×1050 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 473.76×296.1 mm |
| Outline | 493.7×320.1 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 12S4P WLED Without Driver |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Panel Model | M220ZGE-L20 |
|---|---|
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,22.0 inch, 1680×1050 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Energy Star 7.0 Compliance |
