Product Details:
|
| Panel Model: | NL6448BC26-08D | Panel Brand: | NEC |
|---|---|---|---|
| Size: | 8.4 Inch | Panel Type: | A-Si TFT-LCD |
| Display Mode: | Normally Black | Outline: | 200×152 Mm |
| High Light: | nec tft lcd,nec lcd screen |
||

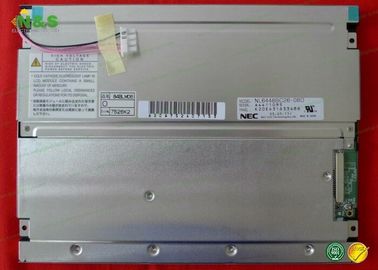

Normally Black NL6448BC26-08D a-Si TFT-LCD ,8.4 inch, 640×480 for 60Hz
NL6448BC26-08D Detail
| Panel Model | NL6448BC26-08D |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | UA-SFT, Normally Black, Transmissive |
| Active Area | 170.88×128.16 mm |
| Outline | 200×152 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 72% |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
| Panel Model | NL6448BC26-08D |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.089×0.267 mm (H×V) |
| Pixel Pitch | 0.267×0.267 mm (H×V) |
| Weight | 330/350g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 170.88×128.16 mm (H×V) |
| Bezel Area | 174.0×131.4 mm (H×V) |
| Outline Dimension | 200×152 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
