450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel

450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel
450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel

Large Image :  450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel

Product Details:
Place of Origin: Korea
Brand Name: NEC
Model Number: NL6448BC33-71
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel

Description
Vibration Level: 2.0G (19.6 M/s²) Operating Temp.: -30 ~ 80 °C
Storage Temp.: -30 ~ 80 °C Contrast Ratio: 900:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Brightness: 450 Cd/m² (Typ.)
Display Mode: TN, Normally White, Transmissive Lamp Type: 3 Strings WLED , 70K Hours , Without Driver
High Light:

NL6448BC33-71 NEC LCD Panel

,

NL6448BC33-71

,

NL6448BC33-71 LCD Panel

450 Cd/M² Brightness 10.4" NL6448BC33-71 NEC LCD Panel



Description Of NEC LCD Panel

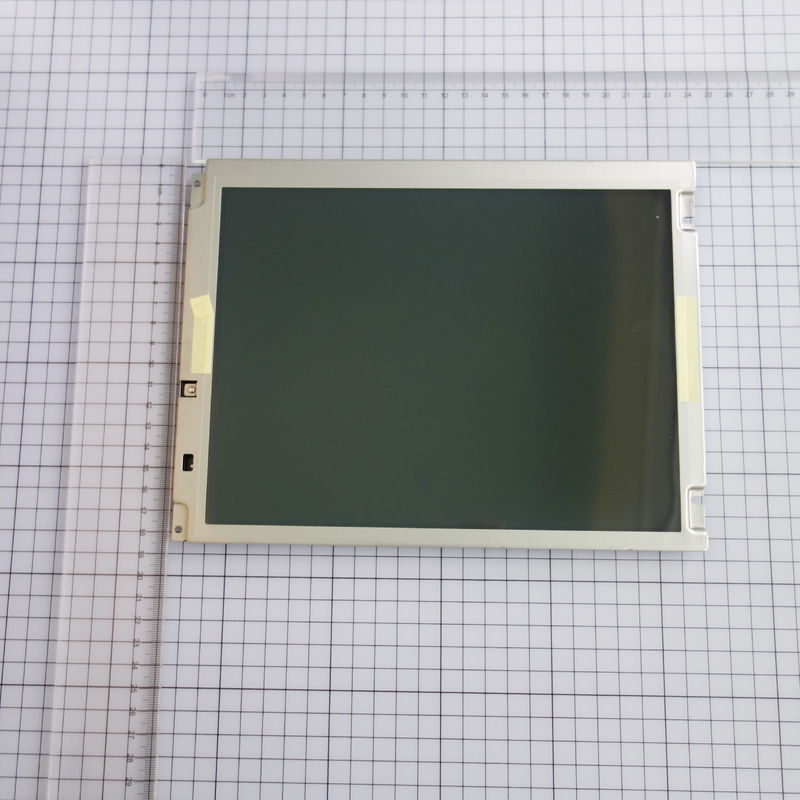

NL6448BC33-71 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from NEC, with a built-in WLED backlight, without backlight driver, without touch screen. On the basis of latest version datasheet 2nd edition which was released out on 5 1 2012, NL6448BC33-71 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



NEC NL6448BC33-71 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.110×0.330 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.330×0.330 mm (H×V) [76PPI]
Mechanical Size :
Display Area
211.2×158.4 mm (H×V)
Outline Dim.
215.4×161.8 mm (H×V)
Outline Dim.
243×185.1 mm (H×V)
Outline Depth
10.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Features :
Weight
475/500g (Typ./Max.)
Surface
Clear, Hard coating (3H)

NEC NL6448BC33-71 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
3/15 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
40%
sRGB
57% coverage
Adobe RGB
42% coverage
DCI-P3
42% coverage
Rec.2020
30% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Application Of NEC LCD Panel NL6448BC33-71

1.Handheld & PDA

2.Intelligent Display

3.Automotive Display

4.Industrial Display
