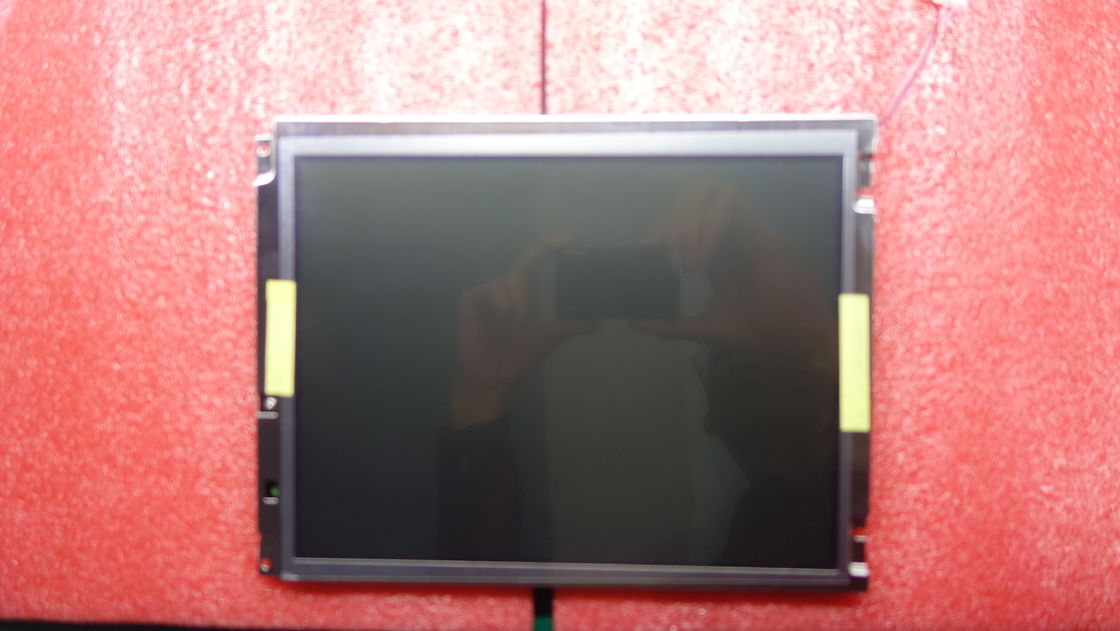

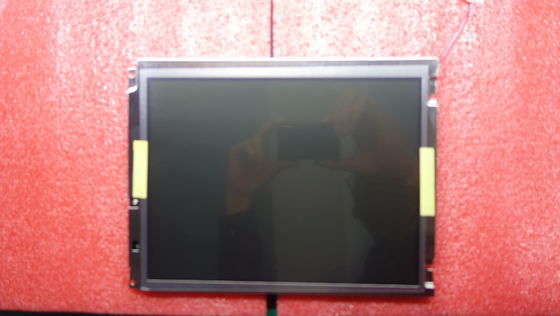

Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel

Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel
Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel

Large Image :  Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel

Product Details:
Place of Origin: Korea
Brand Name: NEC
Model Number: NL6448BC33-74
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 100

Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel

Description
Operating Temp.: -20 ~ 70 °C Storage Temp.: -30 ~ 80 °C
Vibration Level: 2.0G (19.6 M/s²) Brightness: 450 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM) Viewing Angle: 88/88/88/88 (Typ.)(CR≥10)
88/88/88/88 (Typ.)(CR≥10): SA-SFT, Normally Black, Transmissive Lamp Type: 2 Pcs CCFL , 50K Hours , Without Driver
High Light:

NL6448BC33-74 LCM LCD Panel

,

NL6448BC33-74

,

NEC LCM LCD Panel

Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel



Description Of NEC LCD Panel

Now have 2 datasheets of NL6448BC33-74 released by NEC LCD Technologies, Ltd. (hereafter called NEC). According to datasheet with version of 1st edition which was released out on 8 1 2008, NL6448BC33-74 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



NEC NL6448BC33-74 Mechanical Features

Screen Size : 10.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
640(RGB)×480, VGA RGB Vertical Stripe 0.110×0.330 mm 0.330×0.330 mm [76PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
211.2×158.4 mm 215.4×161.8 mm 243×185.1 mm 10.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
475/500g (Typ./Max.) - Clear, Hard coating (3H)
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel

NEC NL6448BC33-74 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
450 cd/m² (Typ.) SA-SFT, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 88/88/88/88 (Typ.)(CR≥10)Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel 0 14/16 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
54% 75% 57%
DCI-P3 Coverage Rec.2020 Coverage Remarks
56% 40% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.40 (Typ./Max.)(5 points) Industrial Module 10.4 inch NEC NL6448BC33-74 LCM LCD Panel 1



We also have other industrial LCD panels, pls contact to us for the further information



H496TAN01.0 AUO 31.5"
H496TAN01.0 AUO 19.5"
H496TAN01.0 AUO 7.5"
H496TAN01.0 AUO 18.5"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 4.7"
M185XTN01.3 CELL AUO 6.0"
M185XTN01.3 CELL AUO 4.7"
M185XTN01.3 CELL AUO 5.5"
M185XTN01.3 CELL AUO 6.1"
M185XTN01.3 CELL AUO 6.0"
M185XTN01.3 CELL AUO 10.1"



Application Of NEC LCD Panel NL6448BC33-74

1. Industrial Display

2. Intelligent Display

3. Medical Display

4. Military Display
