Product Details:
|
| Size: | 8.0 Inch | Display Mode: | Normally White |
|---|---|---|---|
| Active Area: | 162×121.5 Mm | Panel Model: | EJ080NA-05A |
| Surface: | Antiglare | Frequency: | 60Hz |
| Lamp Type: | 3S9P WLED Without Driver | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 50 Pins |
| High Light: | tft lcd display,innolux lcd screen |
||

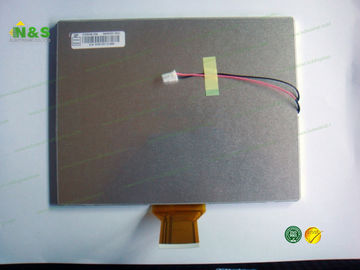

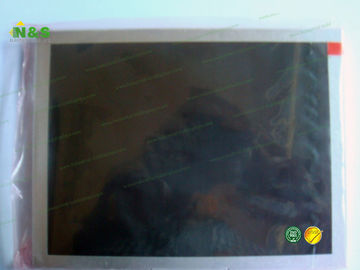

a-Si TFT-LCD EJ080NA-05A 8.0 inch Normally White 162×121.5 mm Active Area for 60Hz
EJ080NA-05A Innolux LCD Panel Specification
| Panel Model | EJ080NA-05A |
|---|---|
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,8.0 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 162×121.5 mm |
| Outline | 183×141×5.9 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S9P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 50 pins |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
EJ080NA-05A Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch | 0.2025×0.2025 mm (H×V) |
| Weight | TBD |
| Surface | Antiglare |
| Active Area | 162×121.5 mm (H×V) |
| Bezel Area | 164.8×124.3 mm (H×V) |
| Outline Dimension | 183×141 mm (H×V) |
