Product Details:
|
| Series: | LMG7420 | Keywords Desc.: | KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T69 |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.1" |
| Resolution: | 240×128 | Form Factor: | Flat Rectangle Display |
| Active Area: | 119.97 (W) × 63.97 (H) Mm (A.A) | Viewing Area: | 124.0 (W) × 70.0 (H) Mm (V.A) |
| Outline Dimension: | 159.4 (W) × 101 (H) Mm | Max. Depth: | 12 Mm |
| Polarizer: | Transmissive | Color Mode: | Black/White (Negative) |
| Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
| Driving Duty: | 1/128 | Controller: | T6963C |
| High Light: | anti glare lcd screen,small lcd panel |
||
LMG7420PLFC - X KOE Industrial Lcd Screen 5.1 inch 240×128 FSTN - LCD Black / White Transmissive
LMG7420PLFC-X General Features
| Panel Brand : | HITACHI |
| Panel Model : | LMG7420PLFC-X |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 5.1 inch |
| Resolution : | 240×128 |
| Display Mode : | STN, Black/White (Negative), Transmissive |
| Active Area : | 119.97×63.97 mm |
| Outline : | 159.4×101×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | 8-bit parallel , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 5.1 inch |
| Dot Resolution : | 240×128 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 50 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.50×0.50 mm (H×V) |
| Pixel Pitch : | 0.50×0.50 mm (H×V) |
| Weight : | 180g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 119.97×63.97 mm (H×V) |
| Bezel Area : | 124.0×70.0 mm (H×V) |
| Outline Dimension : | 159.4×101 mm (H×V) |
| Outline Depth : | 12.0 (Max) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
| SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
| SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
| SP24V001-A | KOE | 9.4" | 640×480 |
| SP10Q010-T | KOE | 3.8" | 320×240 |
| SP10Q010-ZZA | KOE | 3.8" | 320×240 |
| SP10Q010-TZA | KOE | 3.8" | 320×240 |
| SP10Q010 | KOE | 3.8" | 320×240 |
| ST12Q01L6ALZZ | KOE | 4.7" | 320×240 |
| SP14Q011-T | KOE | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

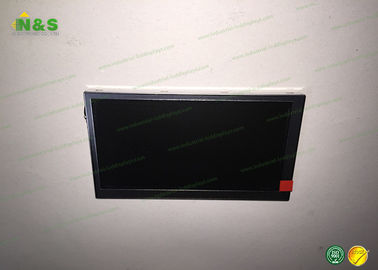

LMG7420PLFC-X Picture
