New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320

New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320

    • New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320
    • New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320
    • New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320
  • New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320

    Product Details:

    Place of Origin: Japan
    Brand Name: HITACHI
    Certification: ISO9001
    Model Number: TX09D70VM1CEA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: TX09D70VM1CEA Panel Brand: HITACHI
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Active Area: 53.64×71.52 Mm Outline: 64×86×5.5 Mm

    New and original TX09D70VM1CEA HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz



    TX09D70VM1CEA Basic Information

    Panel Model TX09D70VM1CEA
    Panel Brand HITACHI
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C
    Remarks 3 in 1 FPC







    Packaging & Delivery

    Packaging Details:

    Antistatic bag + Bubble bag + Foam box + Carton box

    Delivery Detail:

    1-3 working days after payment confirmed

    TX09D70VM1CEA Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 44g (Typ.)
    Surface Antiglare, Hard coating (3H)
    Active Area 53.64×71.52 mm (H×V)
    Bezel Area 57.64×75.52 mm (H×V)
    Outline Dimension 64×86 mm (H×V)
    Outline Depth 4.0/5.5 (Typ./Max.) mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)



    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Competitive price for different brands hard disk.

    • Mass stock with the better price.

    • Multiple options.

    • Warranty service.

    • Better team to provide the before-sales, on-sale and after-sale service

    • Pls send us message if any hard disk needed.

    TX09D70VM1CEA Optical Features

    Display Mode TN, Normally White, TMR
    Brightness 320 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 30 (Typ.)(Tr+Td)
    Viewing Angle 70/70/80/60 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.320; Wy:0.340
    White Variation 1.43 (Max.)(5 points)
    Sunlight Readable Y



    We Can Do for You:

    1) One-to-one service with efficient & professional support;

    2) Protection of your design and all your private information;

    3) We could supply different hard disk for you.

    TX09D70VM1CEA Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No
    Time Controller (T-CON) Need external T-CON







    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    SP14N001 KOE 5.1" 240×128
    SX16H006 KOE 6.2" 640×240
    SX14Q009-ZZA KOE 5.7" 320×240
    SX14Q009 KOE 5.7" 320×240
    SP14N003 KOE 5.1" 240×128
    SP14Q002-T KOE 5.7" 320×240
    SP14Q002-C2A KOE 5.7" 320×240
    SP14Q002-C1A KOE 5.7" 320×240

    We also have other industrial LCD panels, pls contact to us for the further information

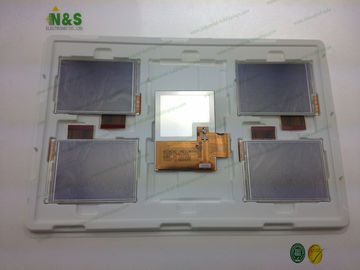

    TX09D70VM1CEA    pictures

    New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320
