Product Details:
|
| Panel Model: | TX09D70VM1CCA | Panel Brand: | HITACHI |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.64×71.52 Mm | Outline: | 64×86×8.35 Mm |
| High Light: | anti glare lcd screen,digital lcd display |
||
TX09D70VM1CCA HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
| Panel Model | TX09D70VM1CCA |
|---|---|
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | 3 in 1 Connector |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 48g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.64×75.52 mm (H×V) |
| Outline Dimension | 64×86 mm (H×V) |
| Outline Depth | 8.05±0.3 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
| Display Mode | TN, Normally White, TMR |
|---|---|
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/80/60 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | Y |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 0.66W (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP14Q002-C1 | KOE | 5.7" | 320×240 |
| SP14Q002-B1 | KOE | 5.7" | 320×240 |
| SP14Q002-A1 | KOE | 5.7" | 320×240 |
| SP14Q002 | KOE | 5.7" | 320×240 |
| SP14Q001 | KOE | 5.7" | 320×240 |
| SX14Q004-ZZA | KOE | 5.7" | 320×240 |
| SX14Q004 | KOE | 5.7" | 320×240 |
| SX16H005 | KOE | 6.2" | 640×240 |
We also have other industrial LCD panels, pls contact to us for the further information

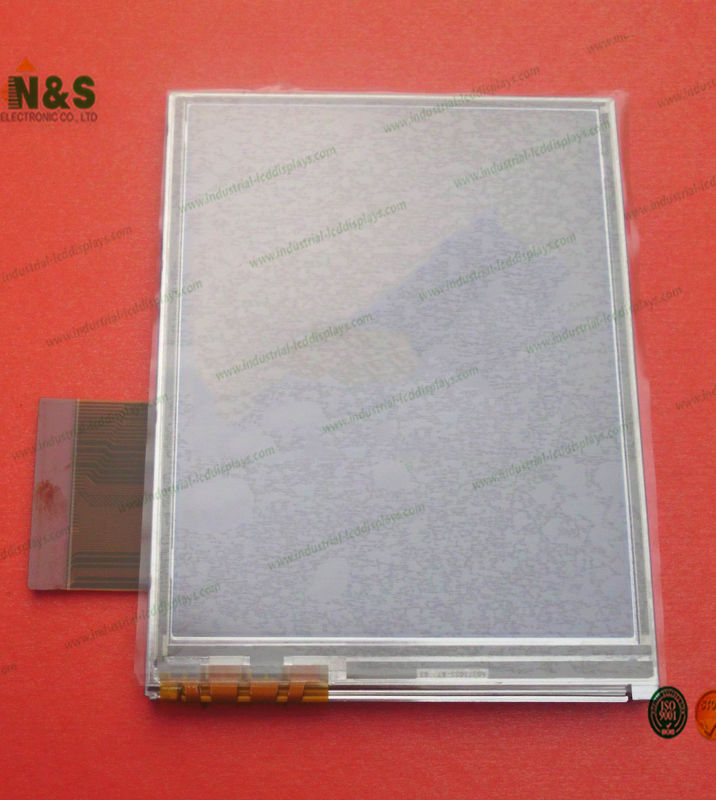

TX09D70VM1CCA pictures
