TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application

TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application

    • TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application
    • TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application
    • TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application
  • TX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application

    Product Details:

    Place of Origin: Japan
    Brand Name: HITACHI
    Certification: ISO9001
    Model Number: TX09D70VM1CBB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: TX09D70VM1CBB Panel Brand: HITACHI
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Outline: 64×86 Mm Contrast Ratio: 300:1 (Typ.)

    TX09D70VM1CBB HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application



    TX09D70VM1CBB Basic Information

    Panel Model TX09D70VM1CBB
    Panel Brand HITACHI
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -20 ~ 70 °C





    Shipment for the LCD Display Panels:
    1. Safe & Professional package for our LCD panels.
    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    TX09D70VM1CBB Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Outline Dimension 64×86 mm (H×V)
    Outline Depth 3.12 mm
    Landscape or Portrait Portrait type



    Feedback:

    (1) Your early confirmation will be highly appreciated after receiving the item.

    (2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

    TX09D70VM1CBB Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 320 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Sunlight Readable N





    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

    TX09D70VM1CBB Backlight System

    Lamp Position Edge light type
    Lamp Type WLED







    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    SP14Q011 KOE 5.7" 320×240
    SP14Q003-ZZA KOE 5.7" 320×240
    SP14Q003-C1A KOE 5.7" 320×240
    SP14Q003-C1 KOE 5.7" 320×240
    SP14Q003 KOE 5.7" 320×240
    SP14Q005 KOE 5.7" 320×240
    SP14Q005-ZZA KOE 5.7" 320×240
    SP12N001-T KOE 4.8" 256×64

    We also have other industrial LCD panels, pls contact to us for the further information

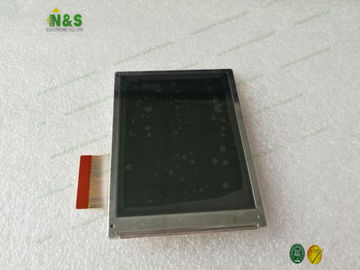

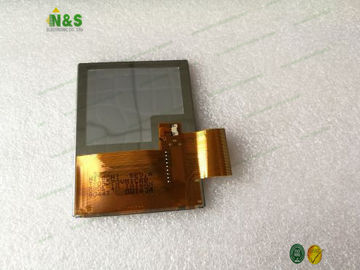

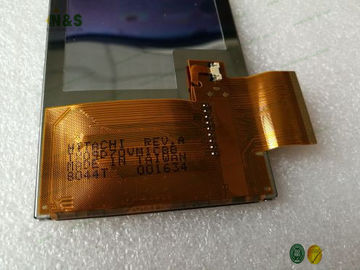

    TX09D70VM1CBB   picturesTX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial ApplicationTX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial ApplicationTX09D70VM1CBB HITACHI KOE LCD Display A-Si TFT-LCD 3.5 Inch 240×320 Industrial Application
