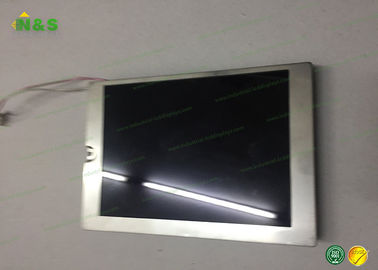

NEC NL6448BC18-06B 5.7 inch Normally White with 116.16×87.12 mm Active Area

NEC NL6448BC18-06B 5.7 inch Normally White with 116.16×87.12 mm Active Area

NEC NL6448BC18-06B  	5.7 inch  Normally White  with  	116.16×87.12 mm Active Area

Product Details:

Place of Origin: Korea
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC18-06B

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Outline: 135×104.6 Mm Brightness: 320 Cd/m² (Typ.)
Response Time: 3/15 (Typ.)(Tr/Td) Signal Interface: CMOS (1 Ch, 6-bit) , 33 Pins

NEC NL6448BC18-06B 5.7 inch Normally White with 116.16×87.12 mm Active Area


NL6448BC18-06B  Characteristic

Panel Brand : NEC
Panel Model : NL6448BC18-01B
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 116.16×87.12 mm
Outline : 135×104.6 mm
Brightness : 320 cd/m² (Typ.)
Contrast Ratio : 820:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 3/15 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 strings WLED Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)


Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!


The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.


NL6448BC18-06B  General Features

Panel Size : 5.7 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 139 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0605×0.1815 mm (H×V)
Pixel Pitch : 0.1815×0.1815 mm (H×V)
Active Area : 116.16×87.12 mm (H×V)
Outline Dimension : 135×104.6 mm (H×V)
Outline Depth : 11.5 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED312TT2 E Ink 31.2" 2560×1440
ES133TE1 E Ink 13.3" 2200×1650
ES133TT2 E Ink 13.3" 2200×1650
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
