Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 211.2×158.4 Mm |
|---|---|---|---|
| Input Voltage: | 3.3/5.0V (Typ.) | Brightness: | 450 Cd/m² (Typ.) |
| High Light: | nec lcd touch screen,nec lcd screen |
||

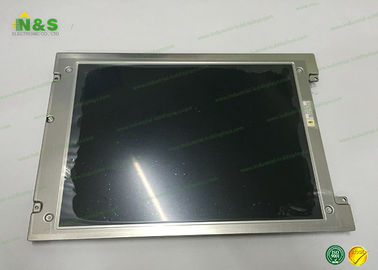

NL6448BC33-74E NEC 10.4 inch Normally Black with 211.2×158.4 mm Active Area
NL6448BC33-74E Characteristic
| Panel Brand : | NEC |
| Panel Model : | NL6448BC33-74E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11 mm |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 14/16 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
NL6448BC33-74E General Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 475/500g (Typ./Max.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) |
| Landscape or Portrait : | Landscape type |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
