Product Details:
|
| Aspect Ratio: | 3:4 (H:V) | Form Factor: | Flat Rectangle Display |
|---|---|---|---|
| Dot Pitch: | 0.159×0.052 Mm (H×V) | Pixel Pitch: | 0.159×0.156 Mm (H×V) |
| High Light: | nec lcd touch screen,nec tft lcd |
||
PVI PD050VXB LCD Panel 5.0 inch Normally White with 74.88×101.76 mm
PD050VXB Main Parameters
| Panel Brand : | PVI |
| Panel Model : | PD050VXB |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480×640(RGB) , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 74.88×101.76 mm |
| Outline : | 91.4×119.3×8.2 mm |
| Surface : | Antiglare |
| Brightness : | 900 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S10P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480×640(RGB) (VGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.159×0.052 mm (H×V) |
| Pixel Pitch : | 0.159×0.156 mm (H×V) |
| Weight : | 116±10g |
| Surface : | Antiglare |
| Active Area : | 74.88×101.76 mm (H×V) |
| Bezel Area : | 79.88×106.70 mm (H×V) |
| Outline Dimension : | 91.4×119.3 mm (H×V) |
| Outline Depth : | 7.5/8.2 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

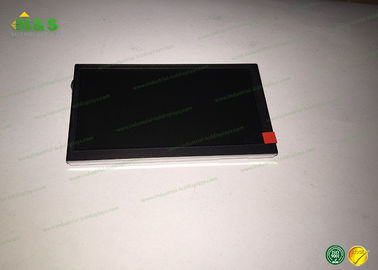

PD050VXB Picture
