Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 246×184.5 Mm | Outline: | 280×210×11.5 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL8060BC31-41C NEC LCD Panel 12.1 inch with 246×184.5 mm for Industrial Application
NL8060BC31-41C Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL8060BC31-41C |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 280×210×11.5 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 550 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 675/705g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×210 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |

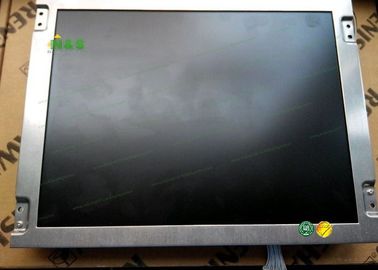

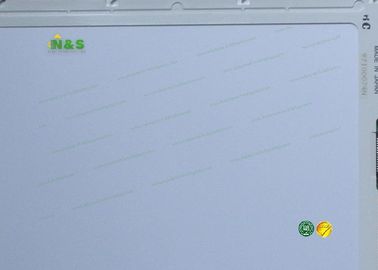

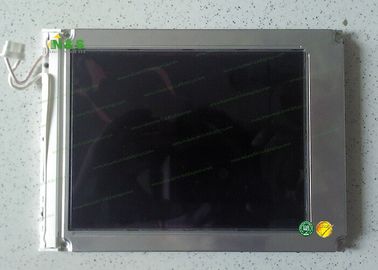

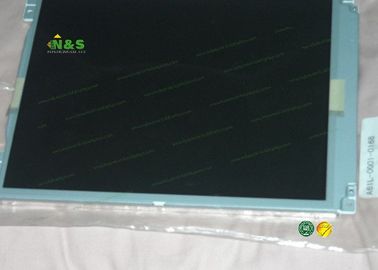

NL8060BC31-41C Picture
