Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 211.2×158.4 Mm |
| High Light: | nec tft lcd,nec lcd screen |
||
NL6448CC33-30W NEC LCD Panel 10.4 inch with 211.2×158.4 mm Active Area
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
NL6448CC33-30W Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448CC33-30W |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 264×187.8×9.3 mm |
| Surface : | Clear, Hard coating (2H) |
| Brightness : | 0 cd/m2 |
| Contrast Ratio : | 150:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 42% |
| Response Time : | 15/55 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/30/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | No B/L |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 34 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m2 |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 42% NTSC (CIE1931) |
| Response Time : | 15/55 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/30/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Transmissivity : | 6.0% (Typ.)(with Polarizer) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

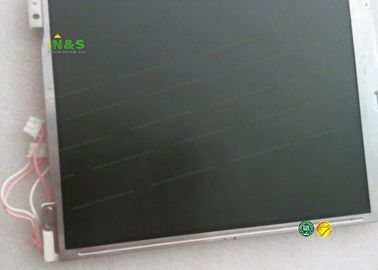

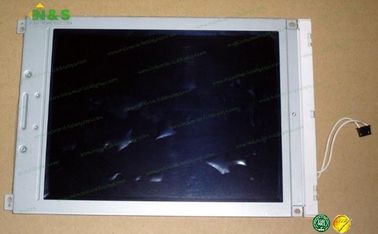

NL6448CC33-30W Picture
