Product Details:
|
| Panel Size: | 20.1 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 408×306 Mm |
| Outline: | 448×348 Mm | Surface: | Antiglare, Hard Coating (3H), Antireflection |
| High Light: | nec tft lcd,nec lcd screen |
||
NEC LCD Panel NL6448BC63-01 20.1 inch Antiglare with 408×306 mm Active Area
NL6448BC63-01 General Features
| Panel Brand : | NEC |
| Panel Model : | NL6448BC63-01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 448×348 mm |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Brightness : | 500 cd/m2 (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 40 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 12 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 20.1 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 39 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.2125×0.6375 mm (H×V) |
| Pixel Pitch : | 0.6375×0.6375 mm (H×V) |
| Weight : | 2.12/2.30Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 448×348 mm (H×V) |
| Outline Depth : | 27.1 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
| ED060KC1 | E Ink | 6.0" | 1072×1448 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

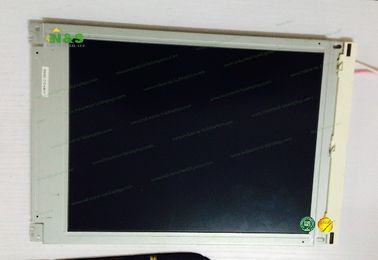

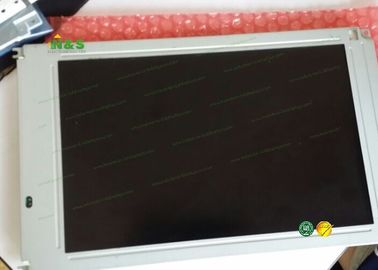

Details Picture for NL6448BC63-01
