Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display ModeActive Area: | TN, Normally White, Transflective | Active Area: | 211.2×158.4 Mm |
| Contrast Ratio: | 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) | Display Colors: | 262K (6-bit) , CIE1931 50% |
| High Light: | nec tft lcd,nec lcd screen |
||
Transflective NL6448BC33-50 NEC LCD Panel 10.4 inch with 243×185.1×11.5 mm Outline
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
NL6448BC33-50 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448BC33-50 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11.5 mm |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/55/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 560/590g (Typ./Max.) |
| Surface : | Clear, Hard coating (2H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

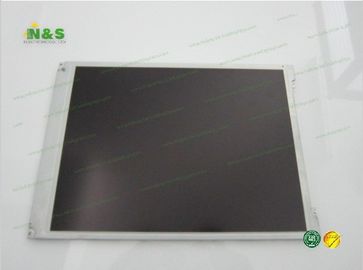

Details Picture for NL6448BC33-50
