Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 132.48×99.36 Mm | Outline: | 178.8×126.8 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
6.5 inch NL6448BC20-12Y NEC LCD Panel with 132.48×99.36 mm Active Area
NL6448BC20-12Y Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448BC20-12Y |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.5 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 132.48×99.36 mm |
| Outline : | 178.8×126.8 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 42% |
| Response Time : | 13/36 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/35/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 6.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 141.5×105.6 mm (H×V) |
| Outline Dimension : | 178.8×126.8 mm (H×V) |
| Outline Depth : | 18.8 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

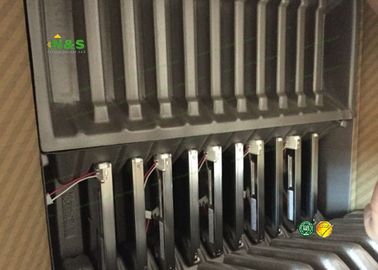

NL6448BC20-12Y Picture
