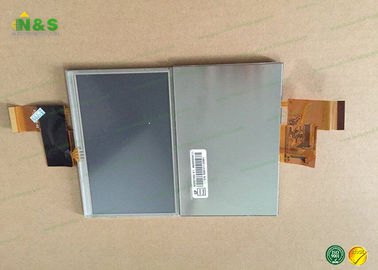

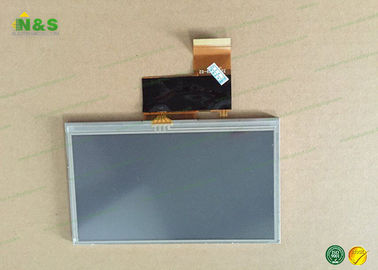

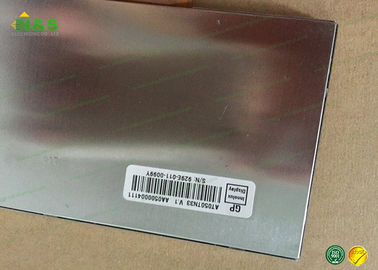

Large Image :  480×272 Innolux LCD Panel AT050TN33 V.1 32000579-02 MP4 GPS 5 inch lcd screen

Product Details:
Place of Origin: Japan
Brand Name: Innolux LCD Displays
Certification: ISO9001
Model Number: AT050TN33 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Standard packing
Delivery Time: 1-2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability: 500PCS/DAY

480×272 Innolux LCD Panel AT050TN33 V.1 32000579-02 MP4 GPS 5 inch lcd screen

Description
Product Number: AT050TN33 V.1 Resolution: 480×272
C/R: 500:1 Brightness: 350
Backlight: WLED Interface: TTL
High Light:

lcd display panel

,

innolux lcd screen





480×272 Innolux LCD Panel AT050TN33 V.1 32000579-02 MP4 GPS 5 inch lcd screen



Panel Brand : INNOLUX
Panel Model : AT050TN33 V.1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.0 inch
                Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 110.88×62.832 mm
Outline : 120.7×75.8×3.3 mm
Surface : Antiglare
            Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 6S2P WLED  Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Application :
